SMART ADJUSTMENT, RELIABLE PERFORMANCE
1 Function Hospital Bed Actuator in India
Our 1 Function Hospital Bed Actuator ensures quiet, smooth, and accurate bed adjustment, enhancing patient comfort and caregiver efficiency with reliable electronic control.
Product Overview
The 1 Function Hospital Bed Actuator in India from Polar Automation provides precise, quiet, and reliable adjustment of hospital bed positions. Designed for hospitals and home-care facilities, it ensures smooth operation and improved patient comfort.

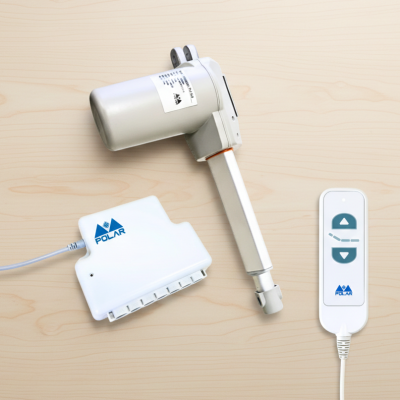

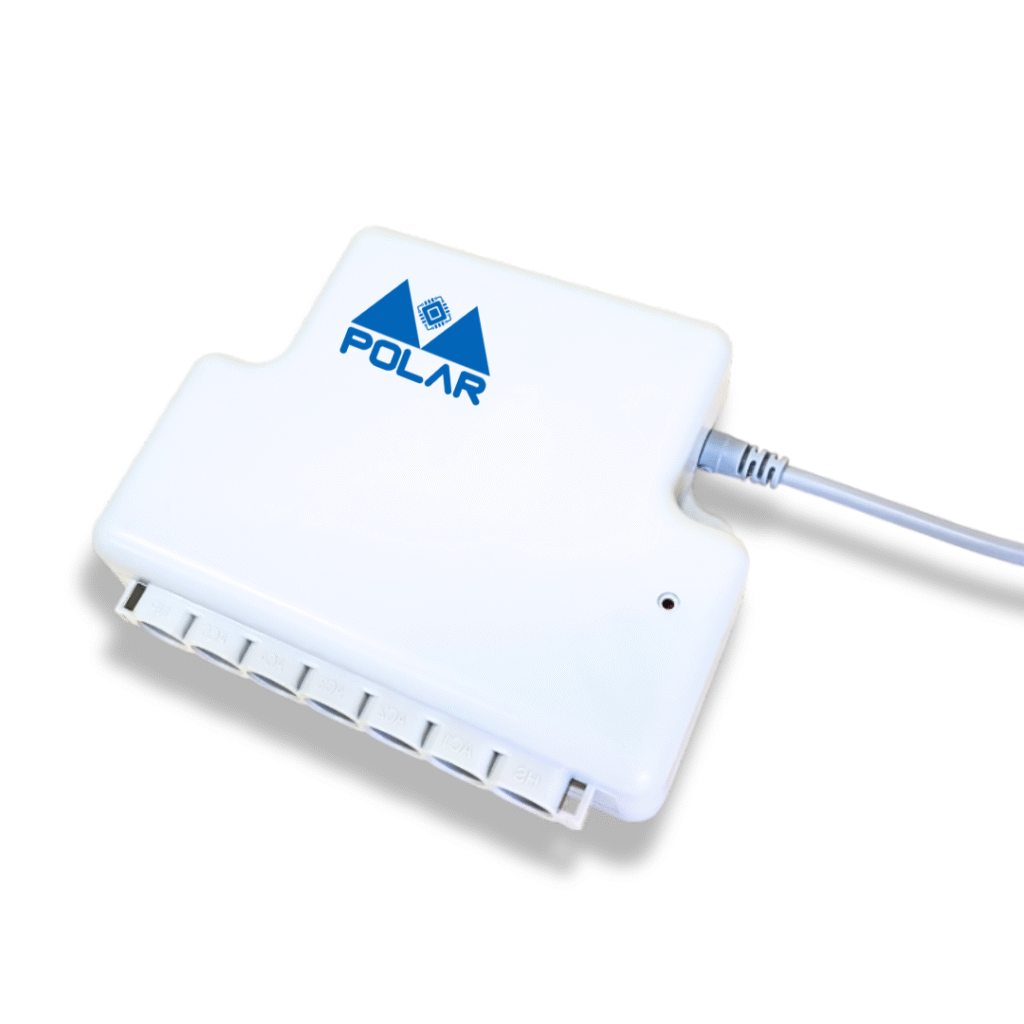

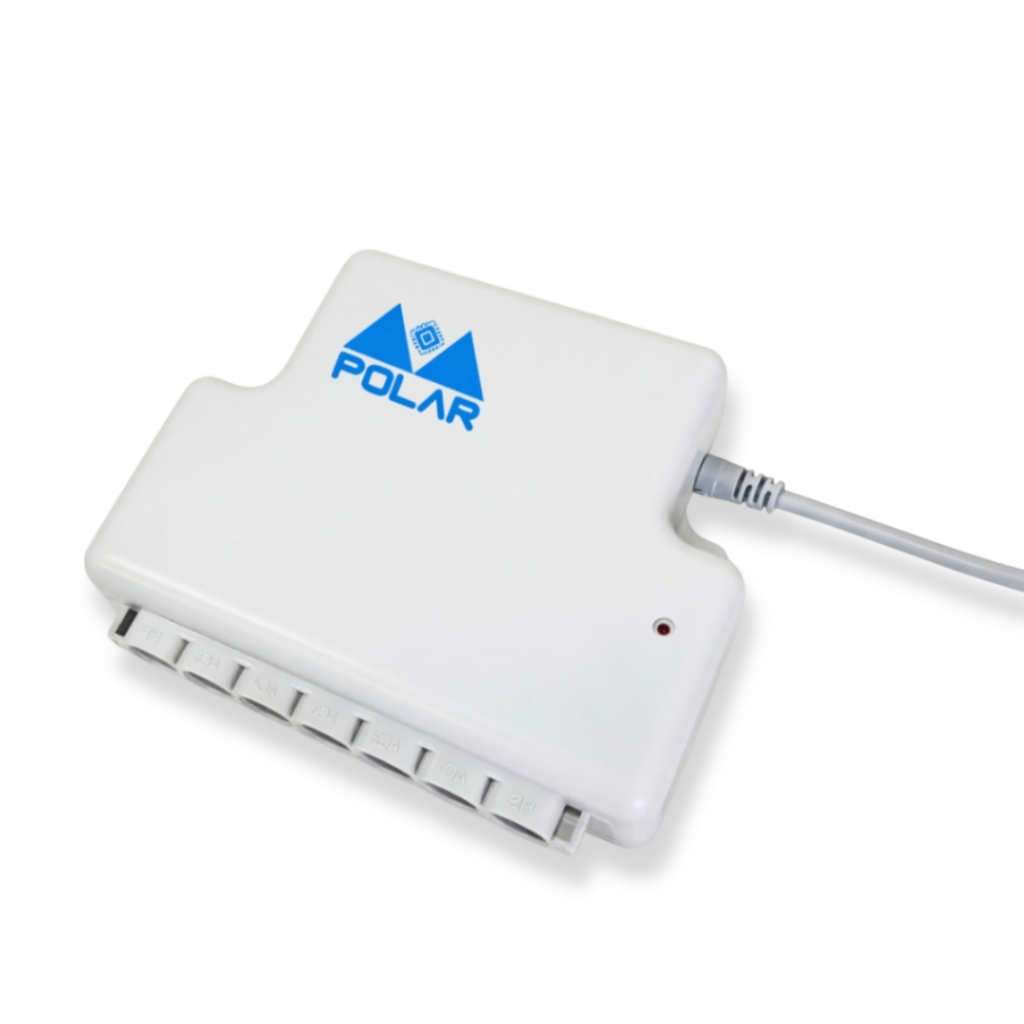

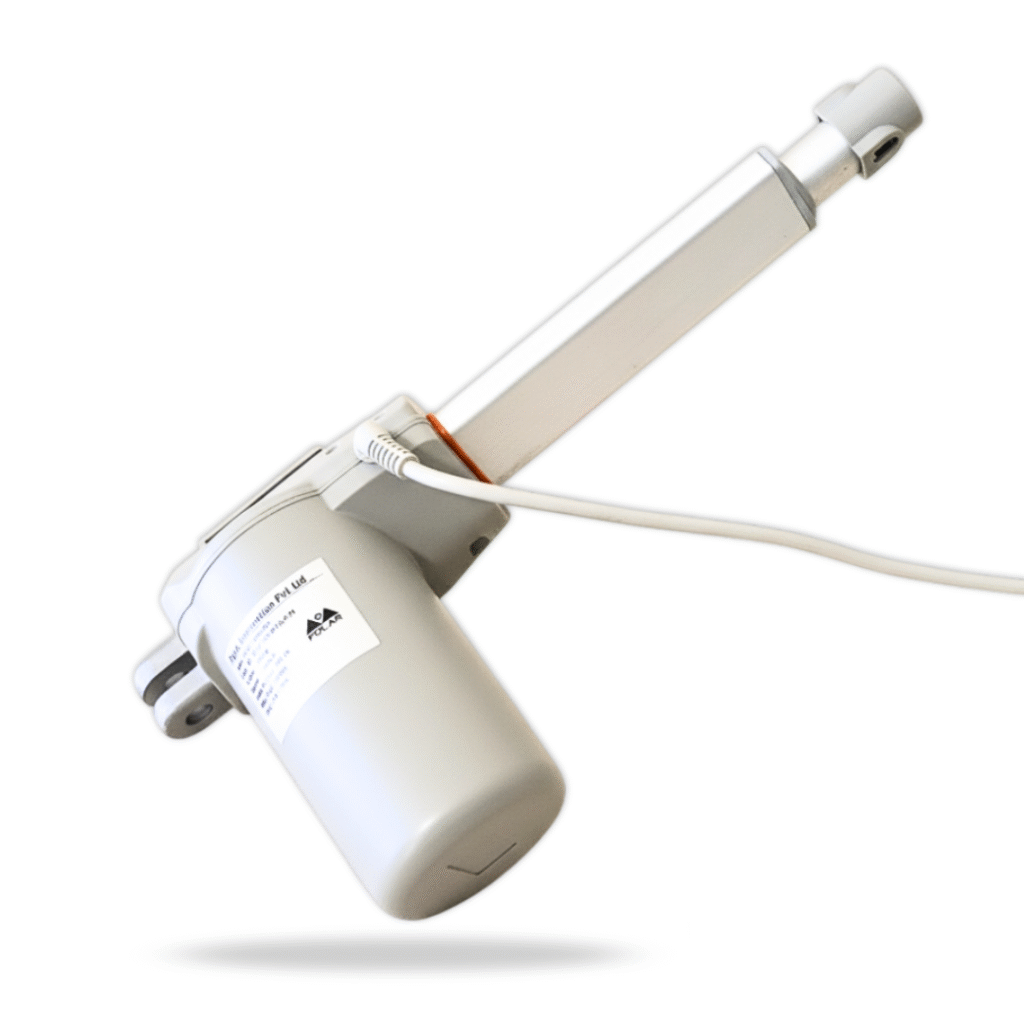

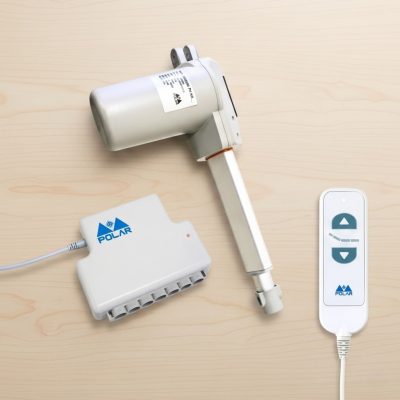

It consists of an electric linear actuator and a central control unit that work together safely and reliably.
The system allows smooth and precise movement to improve patient positioning and support medical staff operations. It is suitable for hospital beds, home care beds, and other healthcare equipment that require adjustable motion.
All components are designed in accordance with medical application standards, ensuring continuous and safe operation under typical hospital conditions.
Key Features of the 1 Function Hospital Bed Actuator
Supports precise positioning with smooth actuator movement.
Operates with noise levels ≤54 dB, suitable for quiet hospital environments.

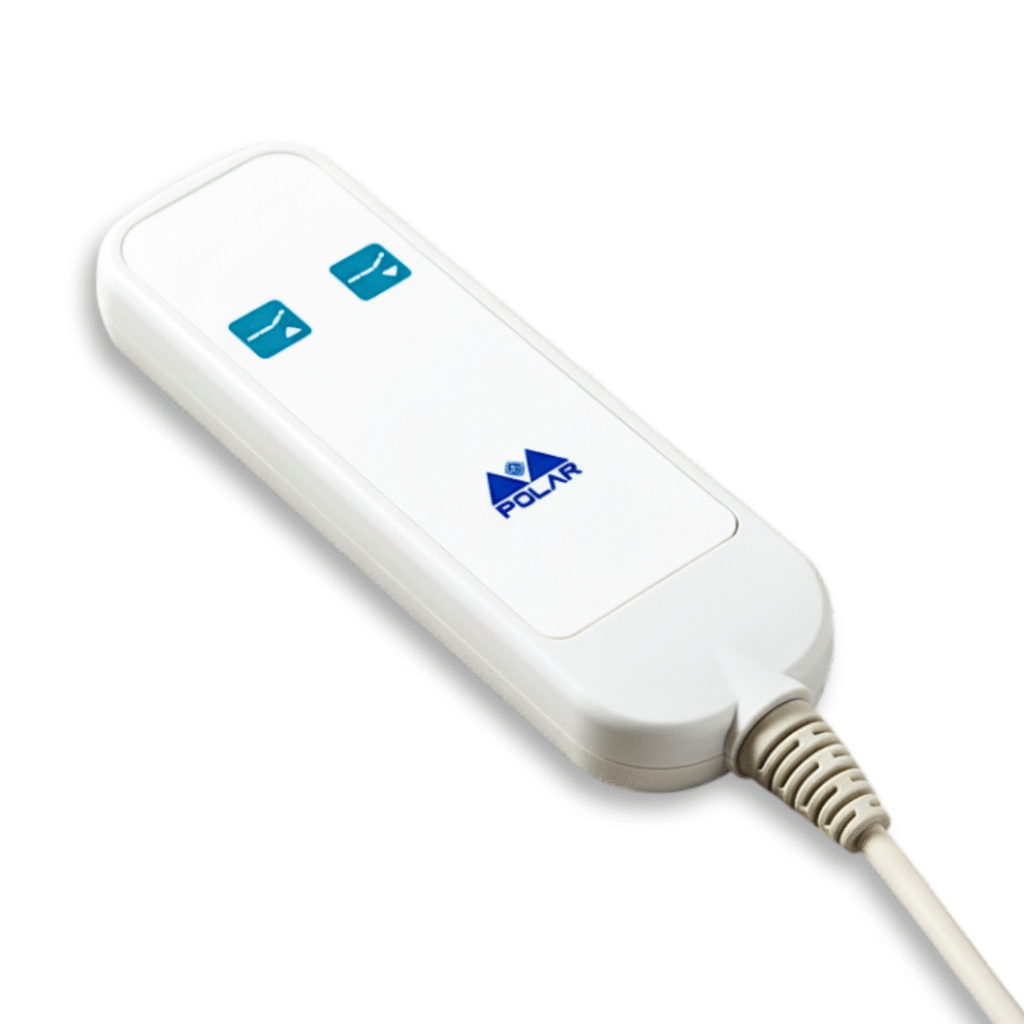

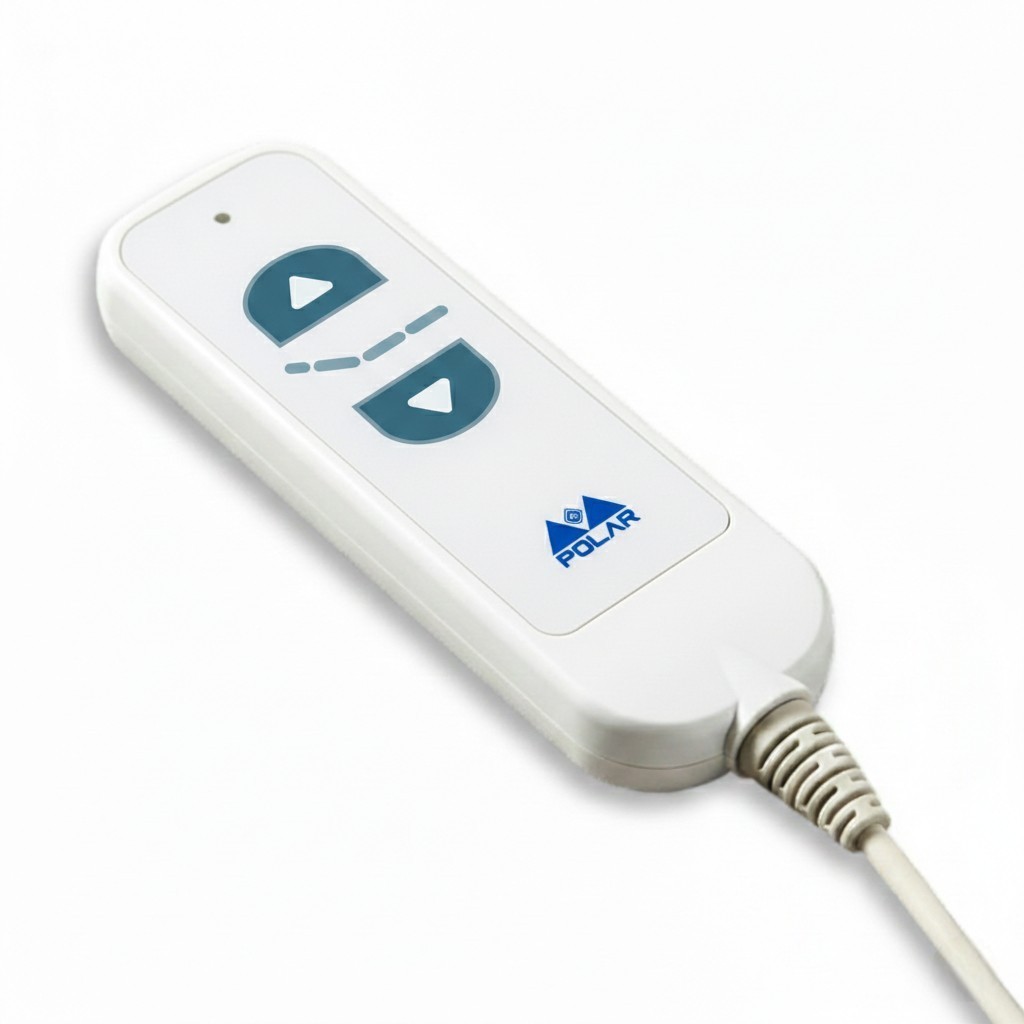

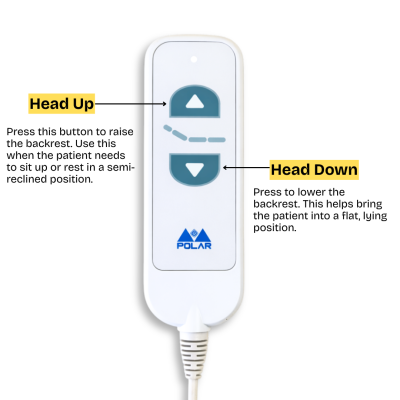

Offers manual operation for ease of control.
Includes integrated limit switches and overload protection for complete safety.
Compact design, low power consumption, and high reliability.
Customizable stroke length and force output as per application requirements.
This simple and effective function enhances patient comfort and caregiver convenience.
| Parameter | Value |
|---|---|
|
Model |
ACS4710 1F |
|
Power Supply |
24V DC |
|
Actuator Power Rating |
60W |
|
Maximum Push Force |
8000N |
|
Actuator Speed |
5mm/s |
|
Stroke Length |
150mm |
|
Retracted Length |
325mm |
|
Noise Level |
≤54 dB |
|
Duty Cycle |
20% |
|
Control Method |
Manual |
|
Communication Protocol |
Wired Communication |
|
Safety Features |
Overload Protection, Limit Switches |
|
Operating Temperature |
0°C to 50°C |
|
Humidity Range |
10% to 90% (Non-condensing) |
Want to learn more?
Download the product datasheet for further details and information
System Components
Industry Experts
Our custom automated solutions combine cross-industry know-how, powerful in-house capabilities, a new generation of intuitive control systems.
Hospital Beds
Enable smooth patient positioning and multi-section adjustments for maximum comfort and caregiver convenience.
Home Care Beds
Designed to support assisted mobility, ergonomic posture, and safe operation in home environments.
Examination Tables
Allow precise height and surface adjustments for better accessibility and clinical efficiency.
Patient Chairs
rovide reliable recline and leg support functions, enhancing patient comfort during extended use.
At Polar Automation, we specialize in designing and manufacturing reliable motion control systems for the medical and healthcare industry. Made in India with complete in-house design, manufacturing, and testing, our actuator solutions ensure consistent quality, faster support, and customization flexibility.
Our systems are engineered to deliver safety, precision, and long-term durability, helping hospitals and healthcare equipment manufacturers enhance patient comfort and operational efficiency. With a strong focus on performance and reliability, we provide solutions you can trust for critical healthcare applications.
