PRECISION CONTROL, ADVANCED BED MOBILITY

7 Function Linear Actuator for Hospital Beds in India

Our 7 function linear actuator system uses 5 synchronized actuators to provide smooth, quiet, and precise bed movement, enabling advanced patient positioning with improved comfort and caregiver efficiency.

7 Function Linear Actuator for Hospital Beds in India

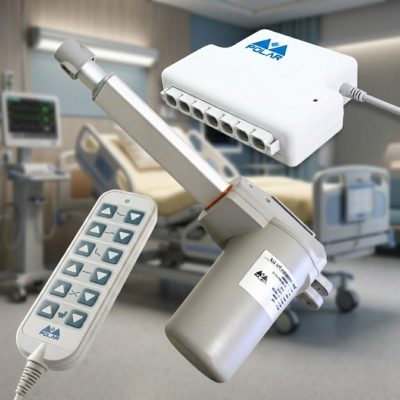

Actuator for ICU Beds in India

Product Overview

The 7 Function Linear Actuator for Hospital Beds from Polar Automation is engineered for advanced medical beds requiring multiple positioning functions and reliable performance under continuous use.

This system integrates 5 electric linear actuators controlled through a centralized control box and multi-function patient handset. Each function operates independently to provide accurate positioning of different bed sections with smooth, low-noise motion.

Ideal for ICU beds, critical care beds, advanced hospital beds, and rehabilitation beds, the system enhances patient care while meeting high standards of safety, durability, and medical reliability.

Key Features of the 7 Function Linear Actuator for Hospital Beds

  • 7 Function Control – Independent control of head, leg, chair position, bed height, tilt, and commode operation
  • 5 Actuator System – Optimized actuator distribution for stable and synchronized movement
  • Quiet Performance – Operates at ≤54 dB for a calm medical environment
  • Reliable Safety – Integrated limit switches and overload protection prevent over-travel and mechanical stress
  • Smooth Motion – Stable, controlled movement with minimal vibration
  • Advanced Patient Handset – Multi-function handset with intuitive icons and responsive buttons
  • Durable Medical Design – Built for continuous hospital and ICU usage

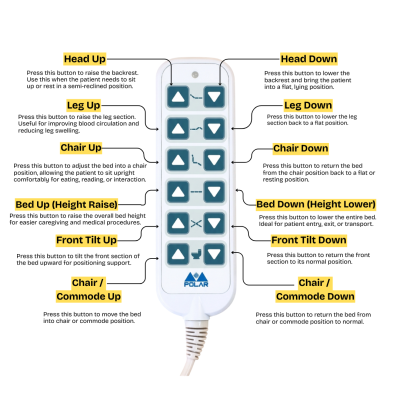

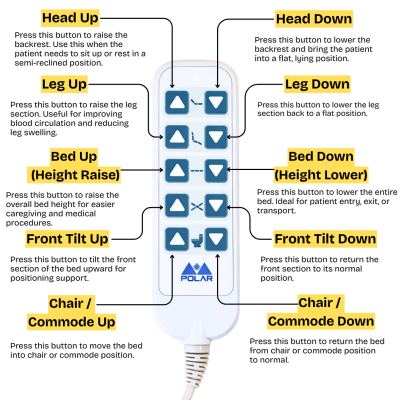

Bed Position and Functional Operation

The 7 Function Patient Handset provides intuitive control of all bed movements. Each function is designed to support both patient comfort and clinical efficiency:

7 function linear actuator for hospital beds

The lightweight, ergonomic handset ensures effortless operation with durable medical connectors and responsive buttons for reliable use in daily hospital settings.

Specifications of 7 Function Linear Actuator for Hospital Beds

Parameter Value
Model
ACS4710 7F
Total Actuators
5
Power Supply
24V DC
Actuator Power Rating
60W
Maximum Push Force
8000N
Actuator Speed
5mm/s
Stroke Length
150mm (Customizable)
Retracted Length
325mm
Noise Level
≤54 dB
Duty Cycle
20%
Control Method
Manual
Communication Protocol
Wired Communication
Safety Features
Overload Protection, Limit Switches
Operating Temperature
0°C to 50°C
Humidity Range
10% to 90% (Non-condensing)

Want to learn more?

Download the product datasheet for further details and information

Download

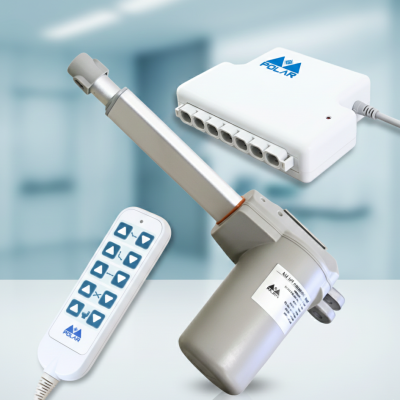

System Components

7 function linear actuator for hospital beds

Actuator

The system uses five electric linear actuators, each assigned to a specific bed movement:

  • Head Section Actuator – Backrest movement
  • Leg Section Actuator – Leg section movement
  • Front Height Actuator – Raises and lowers the front of the bed
  • Rear Height Actuator – Raises and lowers the rear of the bed
  • Tilt / Chair / Commode Actuator – Controls tilt (±), chair positioning, and commode operation

Each actuator operates on 24V DC and is designed for quiet, stable, and continuous medical use.

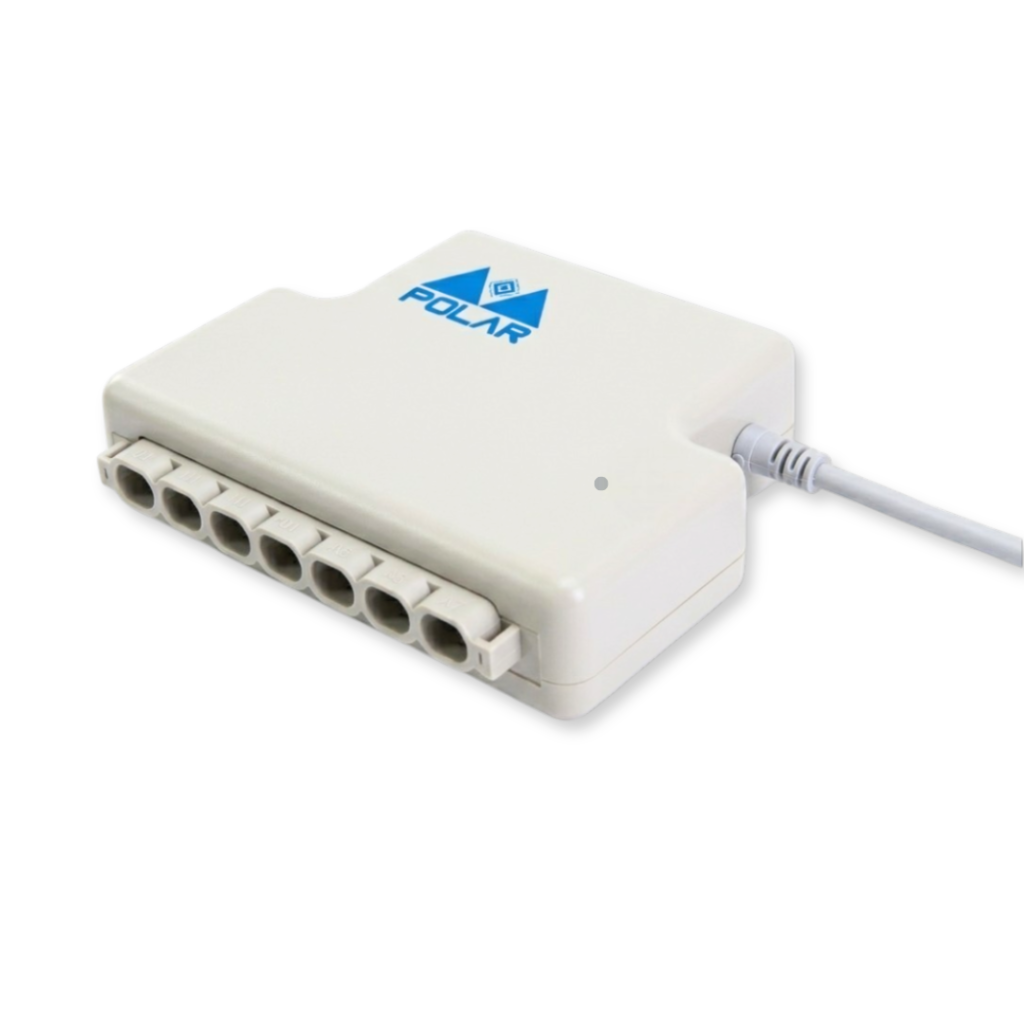

Control Unit

  • The microcontroller-based control unit coordinates the operation of all five actuators based on user input.
  • It ensures synchronized and independent movement through built-in safety logic, motion limits, and overload protection, preventing mechanical conflict and excessive load conditions.
7 function linear actuator for hospital beds
7 function linear actuator for hospital beds

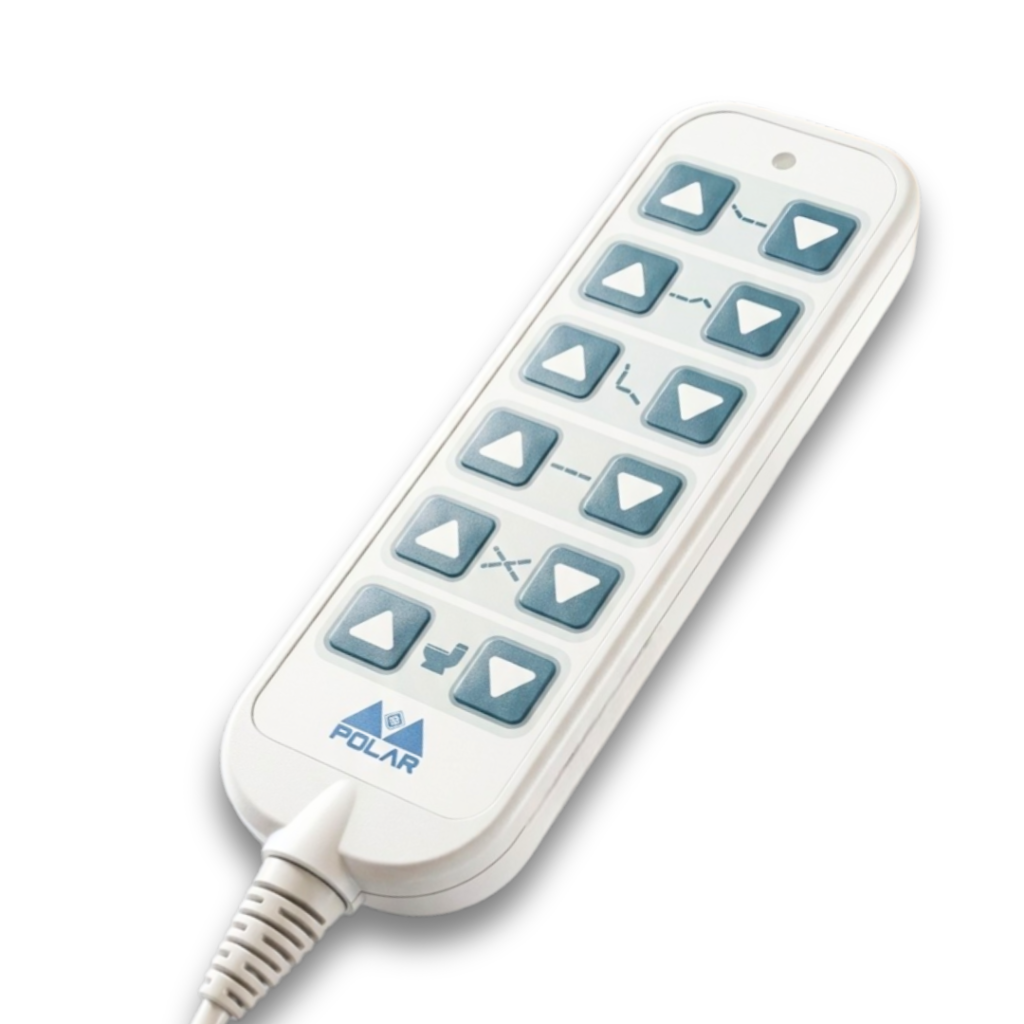

Patient Handset Remote

  • Designed for simplicity and durability, the 7 Function Patient Handset Remote connects directly to the control unit.

  • It allows caregivers and patients to easily control head, leg, height, chair, tilt, and commode functions, improving usability and patient comfort across all care environments.

Control System Functionality

The control box manages synchronized actuator operation and includes multiple built-in safety mechanisms:

  • Limit Switches automatically stop actuators at preset positions
  • Overload Protection prevents damage due to excessive load or obstruction

These features protect patients, caregivers, and equipment during daily operation.

Wiring and Connections

The wiring system is designed for easy integration and medical-grade reliability.

POWER INPUT

Operates on a 24V DC supply to ensure safe and efficient actuator operation.

demo-attachment-453-1

POWER SUPPLY SOURCE

Connects to a grounded 230V AC input for stable energy delivery.

demo-attachment-456-2

STABLE COMMUNICATION

Shielded and grounded cables minimize electrical noise and ensure reliable signal transmission.

demo-attachment-458-3

DIRECT CONNECTIONS

All actuators and the patient handset connect directly to the control box via dedicated ports for seamless setup.

demo-attachment-459-4

Industry Experts

Our custom automated solutions combine cross-industry know-how, powerful in-house capabilities, a new generation of intuitive control systems.

Let's Talk

Applications of the 7 Function Linear Actuator in Hospital Beds

Hospital Beds

Enable advanced patient positioning and multi-section adjustments for enhanced comfort and care.

Provide hospital-grade functionality in long-term care environments.

Facilitate chair positioning and mobility assistance during recovery

Support complex clinical positioning, tilt functions, and caregiver access.

Why Choose Polar Automation?

Polar Automation is a trusted name in medical motion control technology, delivering reliable actuator systems for healthcare equipment.

The 7 function linear actuator for hospital beds combines precision engineering, safety, and durability—making it the ideal solution for hospital bed manufacturers, ICU equipment providers, and healthcare facilities seeking advanced motion control systems.
