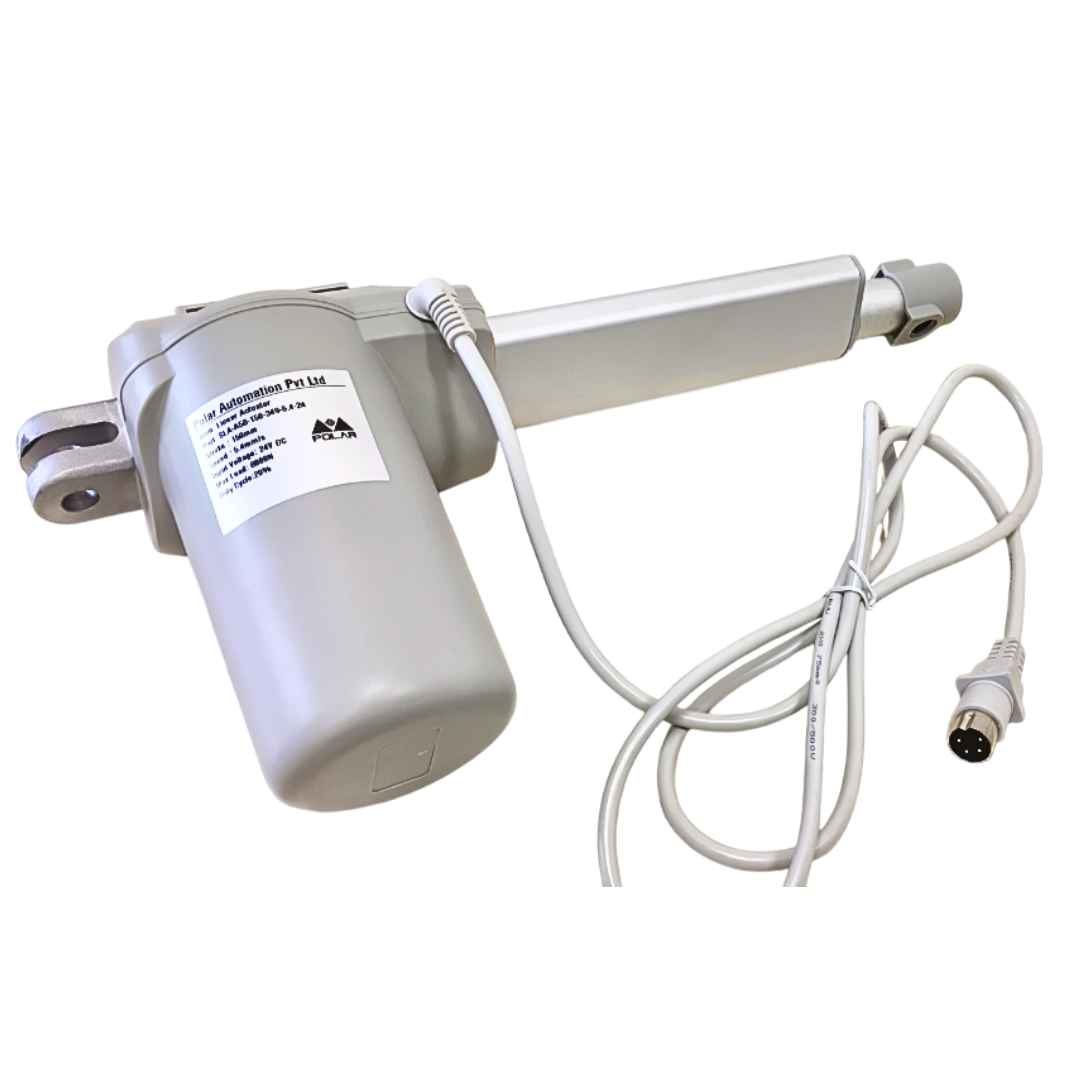

LP4710
| Specification | Details |
|---|---|
|
Power Supply |
24V DC |
|
Motor Power |
60W |
|
Maximum Push Force |
Up to 4000N |
|
Speed |
5 mm/s |
|
Stroke Length |
150 mm (customizable) |
|
Retracted Length |
Approx. 349 mm |
|
Noise Level |
≤54 dB
|
|
Duty Cycle |
20% |
|
Safety |
Limit switches, Overload protection
|
|
Operating Temperature |
0°C – 50°C |
|
Humidity |
10% – 90% |
Want to learn more?
Download the product datasheet for further details and information

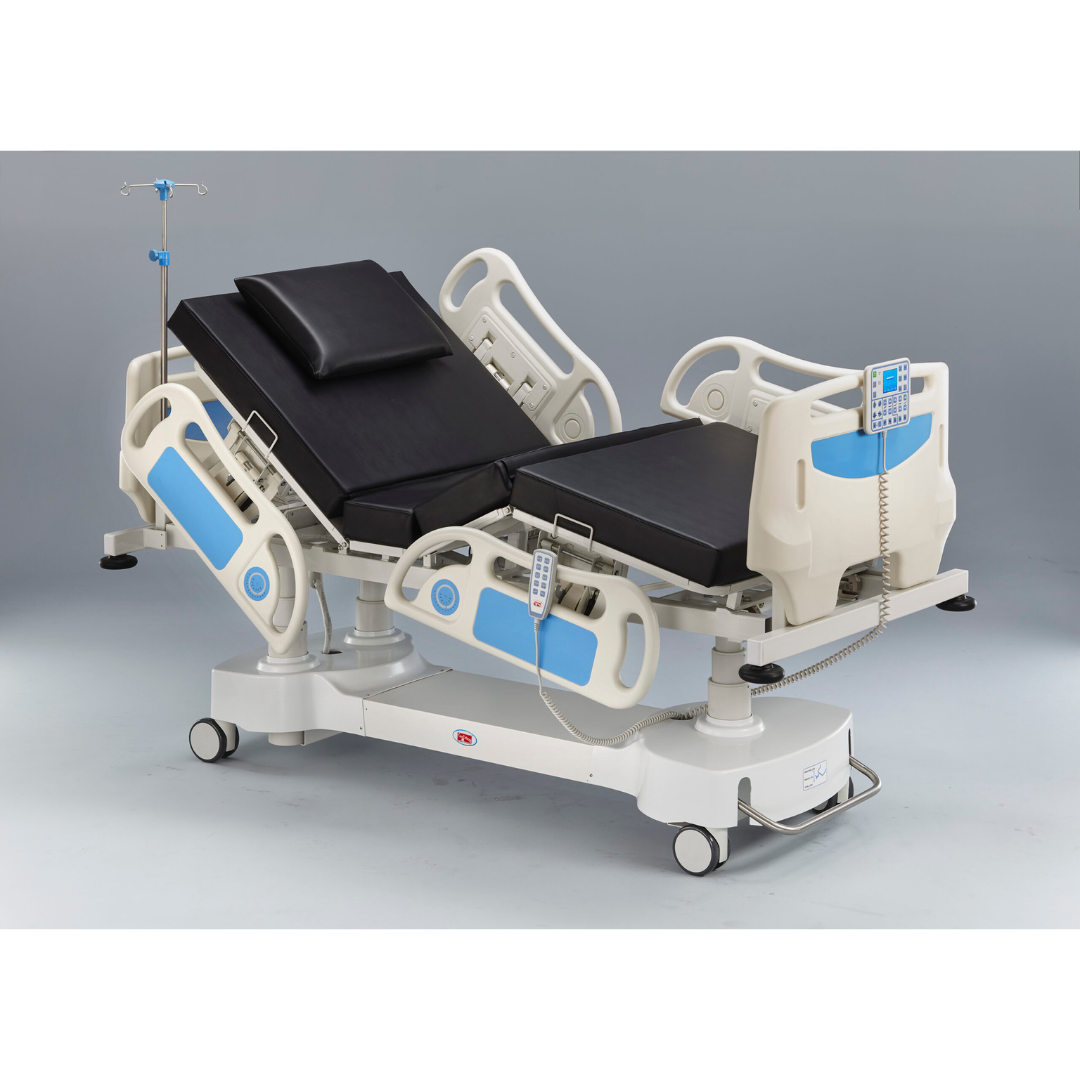

Hospital Beds
Provides smooth and stable adjustment for backrest, leg, and height functions to enhance patient comfort and support daily clinical needs.
ICU & Critical-Care Beds
Delivers powerful, precise motion for complex ICU positioning, ensuring reliable performance during continuous critical-care use.
Home-Care Beds
Offers quiet, controlled movement for patient comfort at home, supporting caregivers with easy, safe adjustment functions.
What is an electric linear actuator?
An electric linear actuator is a device that converts electrical energy into straight-line motion. Unlike a motor that creates rotation, a linear actuator pushes or pulls something along a single axis. It’s commonly used in adjustable beds, medical equipment, industrial machinery, and home automation to provide smooth and controlled movement. Electric actuators are known for being precise, quiet, and easy to integrate with control systems.
How do I choose the right linear actuator for my application?
To choose the right linear actuator, you should consider factors such as the required load capacity, stroke length, speed, and voltage. Additionally, ensure that the actuator fits within your space and is compatible with your existing systems.
What safety features does the LP4710 include?
The LP4710 is equipped with built-in limit switches that automatically stop the actuator at the end of its stroke, preventing overextension. It also features electronic overload protection to safeguard against excessive current and potential damage. These safety mechanisms ensure reliable and secure operation in various applications.
Can the LP4710 be customized to specific requirements?
Yes, the LP4710 actuator can be customized to fit your specific needs. Options include different stroke lengths, input voltages (12V or 24V), and speed settings. You can also request special mounting brackets or wiring configurations if needed. Customization helps ensure the actuator works perfectly with your application.
