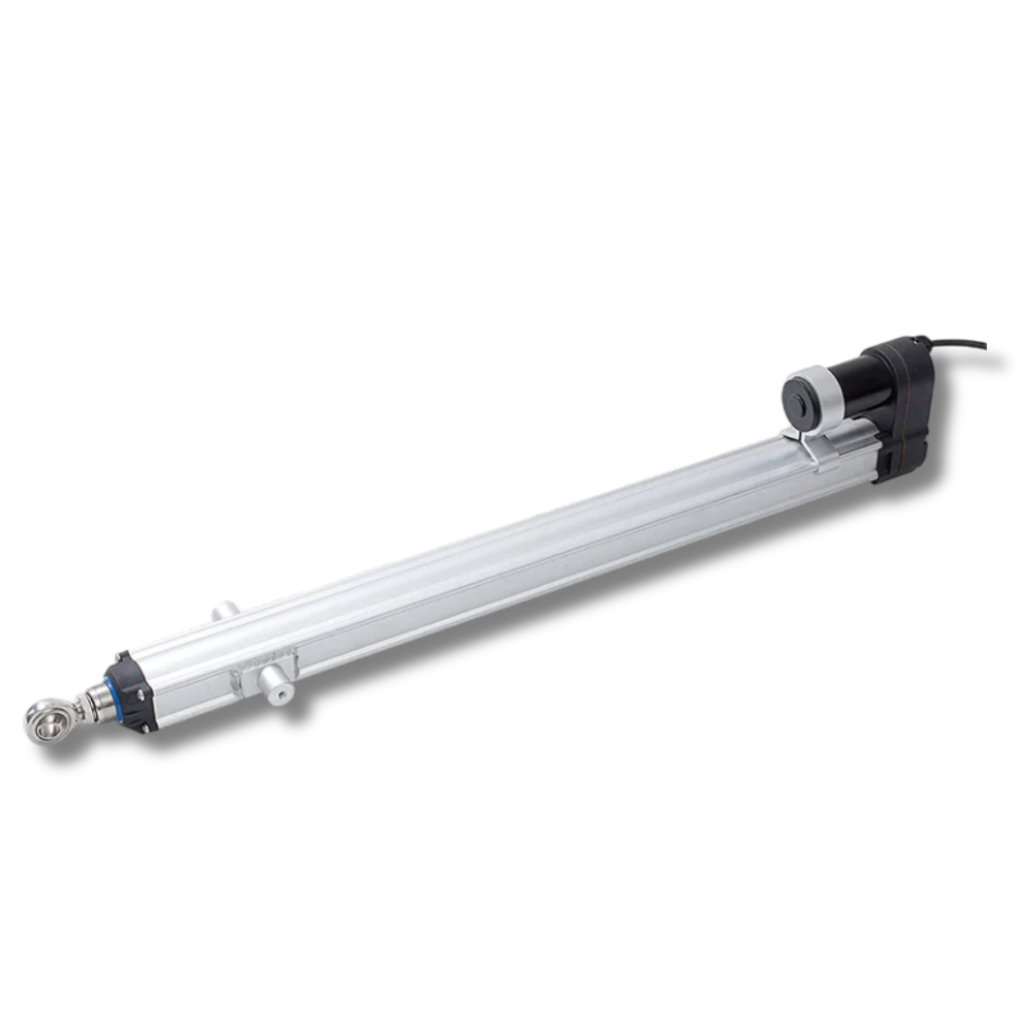

PAX-0100W
| Specification | Details |
|---|---|
|
Voltage Options |
12V / 24V / 36V / 48V DC (24V recommended) |
|
Stroke Length |
10 mm to 1500 mm (0.4 to 60 inches) |
|
Speed (No Load) |
5 to 60 mm/s (varies by model) |
|
Max Load Capacity |
900N (90 kg / 200 lbs.) at 5 mm/s (vertical push) |
|
Current (No Load) |
0.8–1A @12V / 0.4–0.5A @24V |
|
Current (Full Load) |
2.5–3A @12V / 1.4–1.6A @24V |
|
Duty Cycle |
10% (Max. 2 minutes continuous use) |
|
Shaft Diameter |
20 mm |
|
Mounting Hole Diameter |
6.5 mm |
|
Housing Material |
Stainless steel |
|
Rod Material |
Stainless steel |
|
Gear Material |
Steel alloy |
|
Motor Type |
Brushed DC motor |
|
Wiring |
2-core or 6-core (for Hall sensor models) |
|
Waterproof Rating |
IP65 / IP68 |
|
Temperature Range |
-26°C to 85°C |
|
Noise Level |
45 dB to 55 dB (depends on configuration) |
|
Power Supply Advice |
Use suitable power supply based on unit count |
|
Certifications |
CE Certified |
Want to learn more?
Download the product datasheet for further details and information
Solar Tracking Systems
Enhances the efficiency of solar panels by automatically adjusting their angle to follow the sun’s movement. Offers reliable performance in outdoor environments with durable, weather-resistant construction.

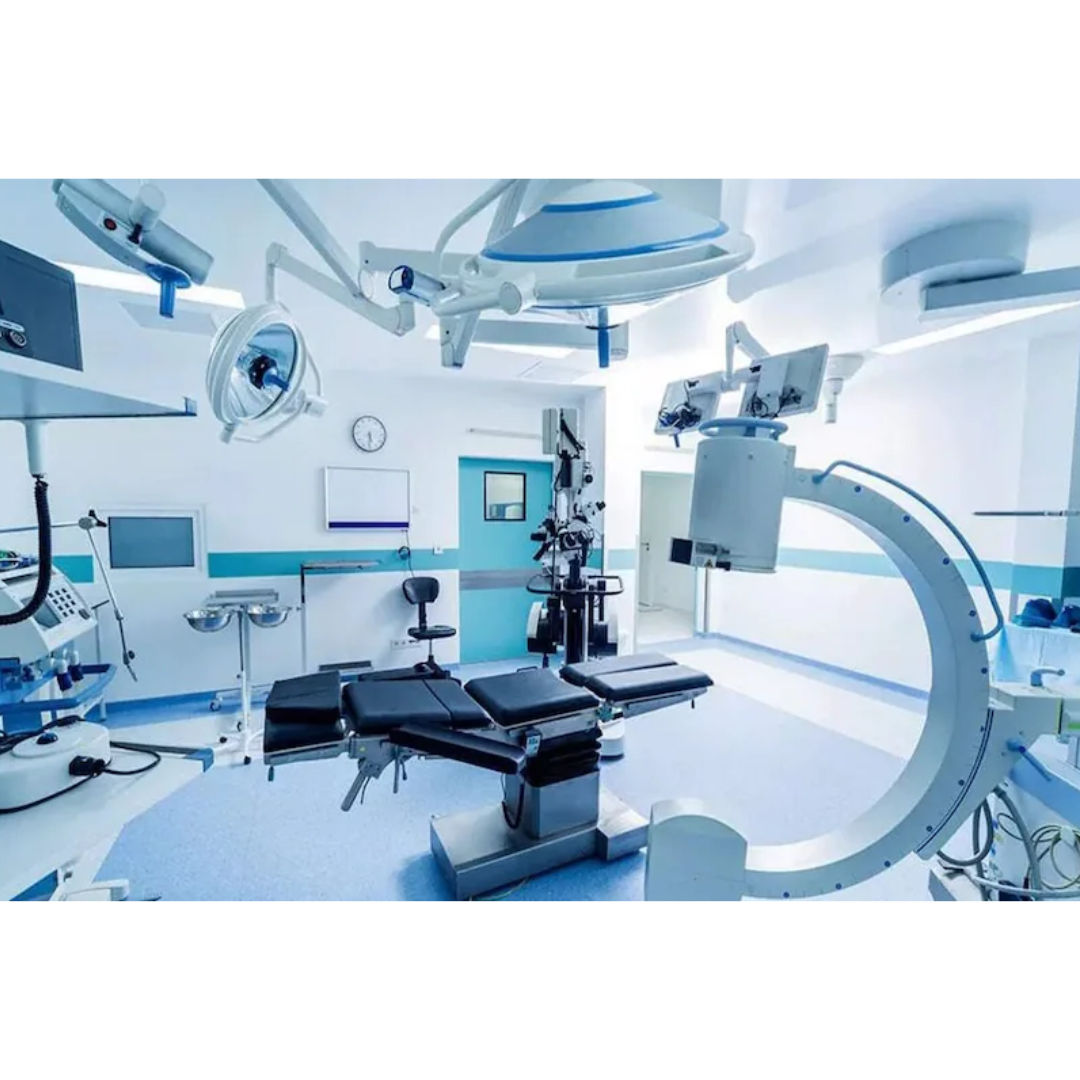

Medical Equipment
Ideal for use in electric hospital beds, medical chairs, and patient lifts, ensuring smooth and quiet operation. Built-in safety features and precise motion control provide comfort and reliability in healthcare settings.
Agricultural Machinery
Used in automatic feeding systems, adjustable sprayers, and ventilation windows in greenhouses. Supports rugged use with strong thrust and corrosion-resistant components.
What is an electric linear actuator?
An electric linear actuator is a device that converts electrical energy into straight-line motion. Unlike a motor that creates rotation, a linear actuator pushes or pulls something along a single axis. It’s commonly used in adjustable beds, medical equipment, industrial machinery, and home automation to provide smooth and controlled movement. Electric actuators are known for being precise, quiet, and easy to integrate with control systems.
How do I choose the right linear actuator for my application?
To choose the right linear actuator, consider key factors such as required load capacity, stroke length, speed, voltage, and mounting position. Also, assess the working environment (e.g., dust, water, or temperature exposure) and any control requirements like synchronization or feedback.
What safety features does the PAX-0100W include?
The PAX-0100W is equipped with multiple safety features, including built-in limit switches to prevent over-travel, a clutch to protect gears and motor, and motor overload and overheat protection. It also offers optional Hall sensors for synchronized movement and automatically locks in place when powered off for added safety.
Can the PAX-0100W be customized to specific requirements?
Yes, the PAX-0100W can be customized based on your specific needs, including stroke length, speed, voltage, mounting style, and control options. Please contact us with your requirements, and our team will assist you with the best solution.
