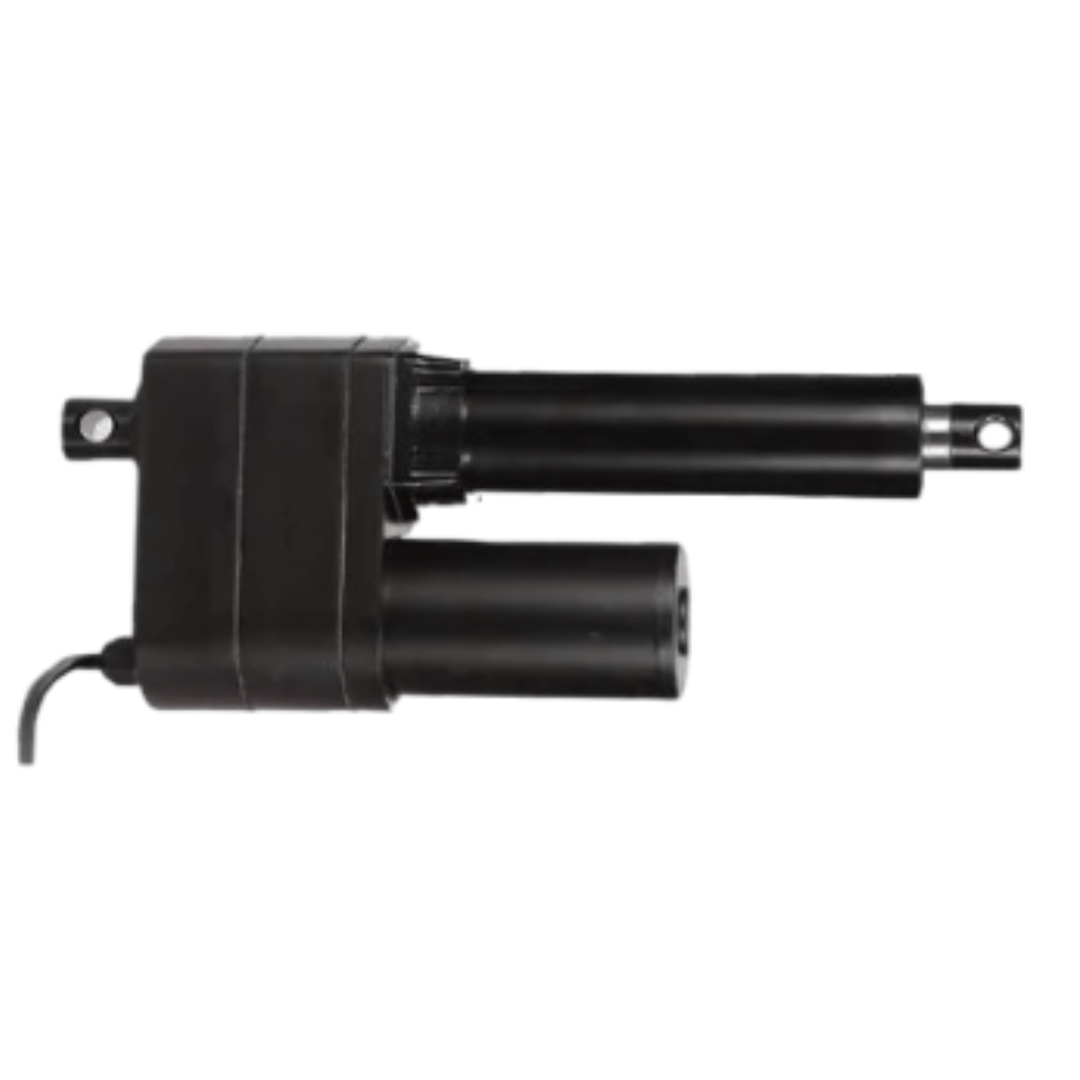

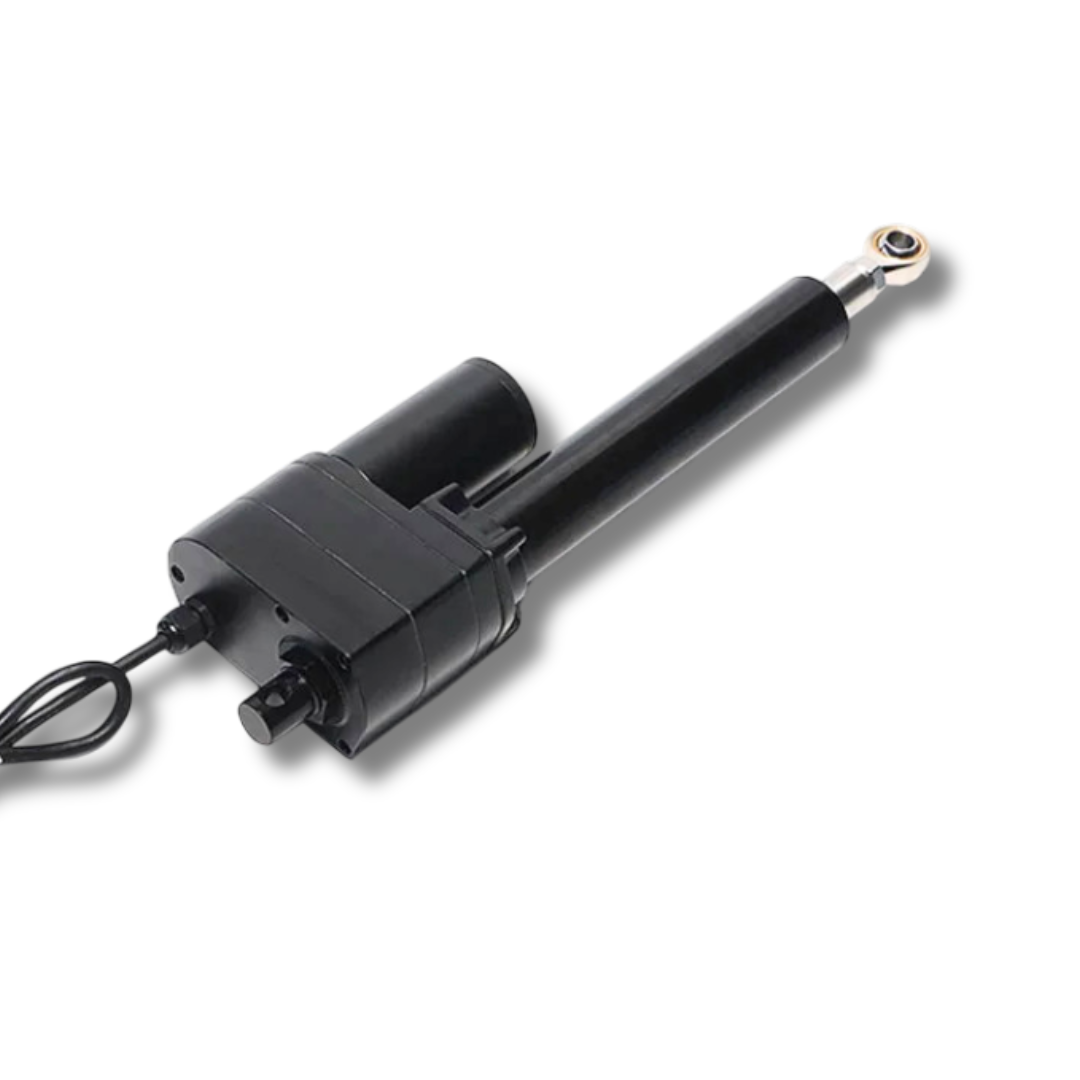

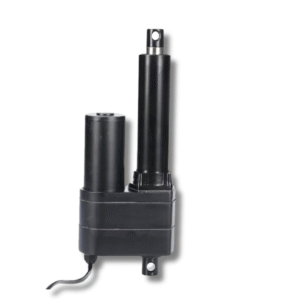

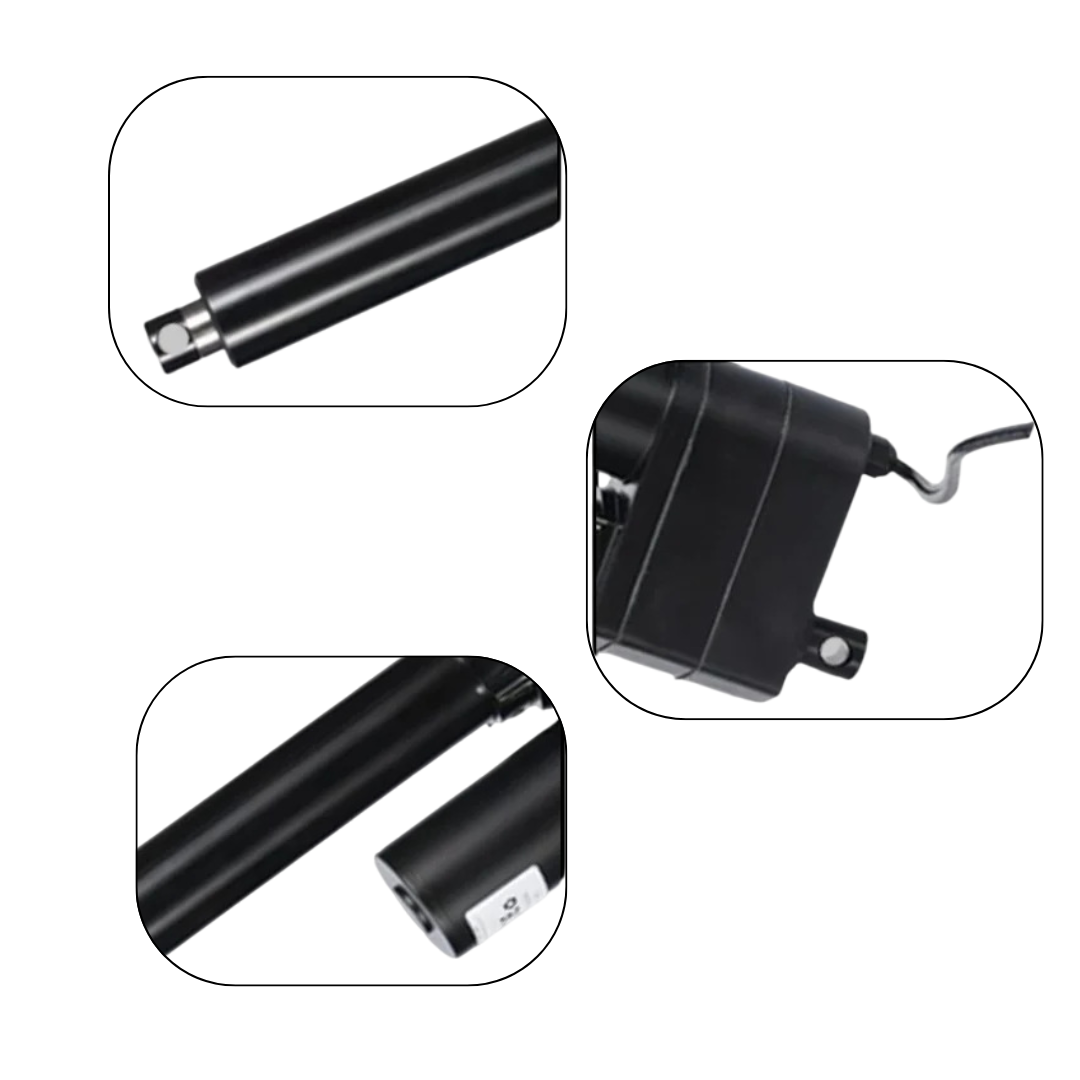

PAX-0800
| Specification | Details |
|---|---|
|
Model |
PAX-0800 |
|
Maximum Push/Pull Force |
800kg / 1000kg (8000N / 10000N) |
|
Voltage Options |
12V / 24V / 36V / 48V DC |
|
Standard Stroke |
50, 100, 150, 200, 300, 400, 600, 800, 1000 mm (customizable) |
|
Installation Distance |
L = S (stroke) + 250mm (retracted) |
|
Fully Extended Distance |
2S (stroke) + 250mm |
|
No-Load Speed |
Maximum 8mm/s |
|
Rated Load Speed |
5mm/s (800KG), 8mm/s (500KG) |
|
Ambient Temperature |
-26°C to +65°C |
|
Protection Level |
IP54 / IP65 |
|
Limit Switch |
Built-in |
|
Noise Level |
≤ 60dB |
|
Controller |
Supports wired or wireless control |
Want to learn more?
Download the product datasheet for further details and information
Hospital Beds
Provides smooth, quiet lifting for head, leg, and height adjustments in medical beds, enhancing patient comfort and ease of care.
Agricultural Machinery
Enables reliable movement of parts like sprayers and harvesters, built to withstand tough outdoor conditions.
Solar Tracking Systems
Adjusts panel angles for optimal sunlight exposure, improving solar energy efficiency with durable, precise motion.
What is an electric linear actuator?
An electric linear actuator is a device that converts electrical energy into straight-line motion. Unlike a motor that creates rotation, a linear actuator pushes or pulls something along a single axis. It’s commonly used in adjustable beds, medical equipment, industrial machinery, and home automation to provide smooth and controlled movement. Electric actuators are known for being precise, quiet, and easy to integrate with control systems.
How do I choose the right linear actuator for my application?
Choose a linear actuator based on load, stroke length, speed, and voltage required for your application. Also, consider the environment and control options for reliable performance.
What safety features does the PAX-0800 include?
The PAX-0800 features built-in limit switches to stop movement at preset points, preventing damage. It also includes IP54/IP65 protection for safe use in dusty or wet environments, ensuring reliable and secure operation.
Can the PAX-0800 be customized to specific requirements?
Yes, the PAX-0800 can be customized to meet specific requirements such as stroke length, voltage, mounting style, and control options. This makes it suitable for a wide range of applications across different industries.
