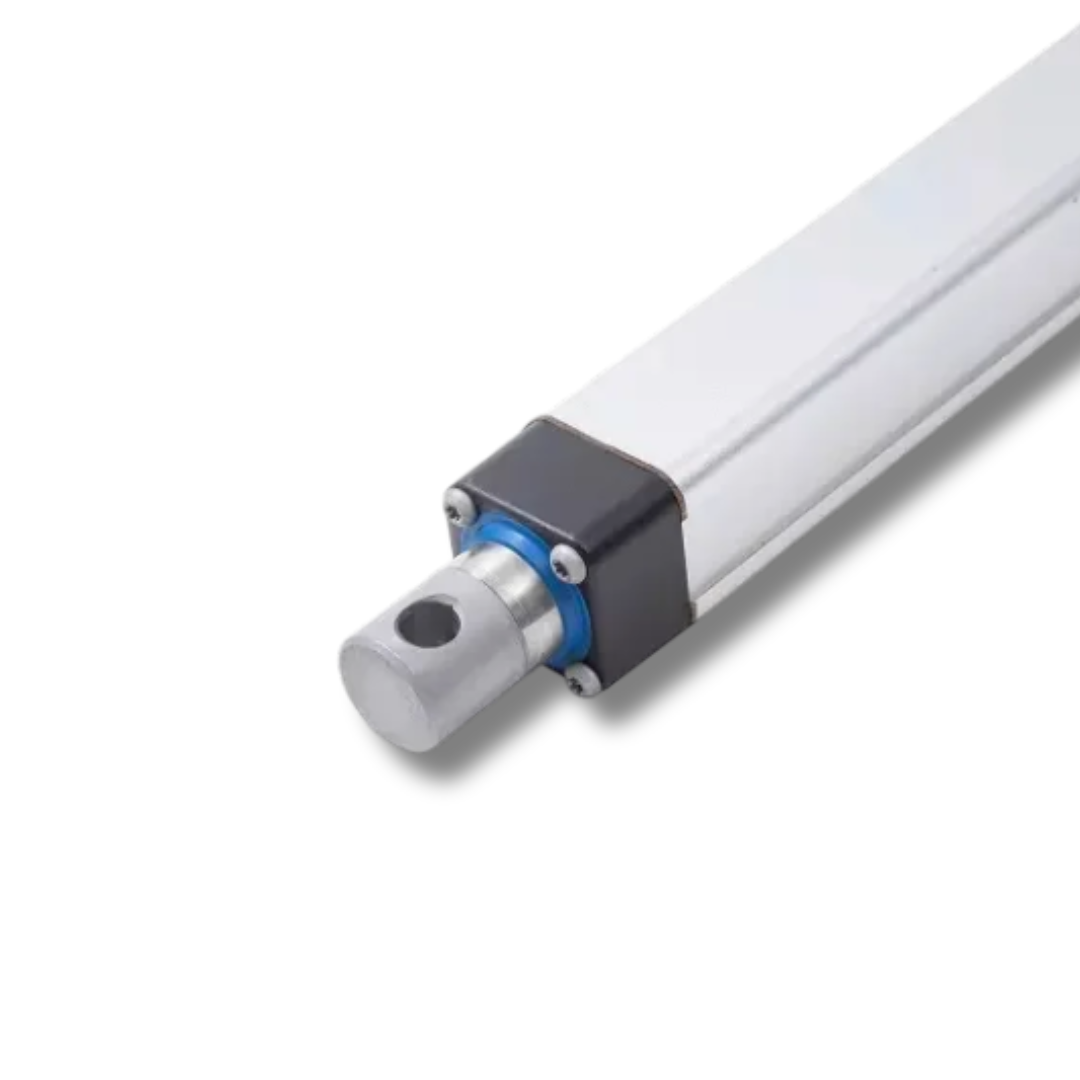

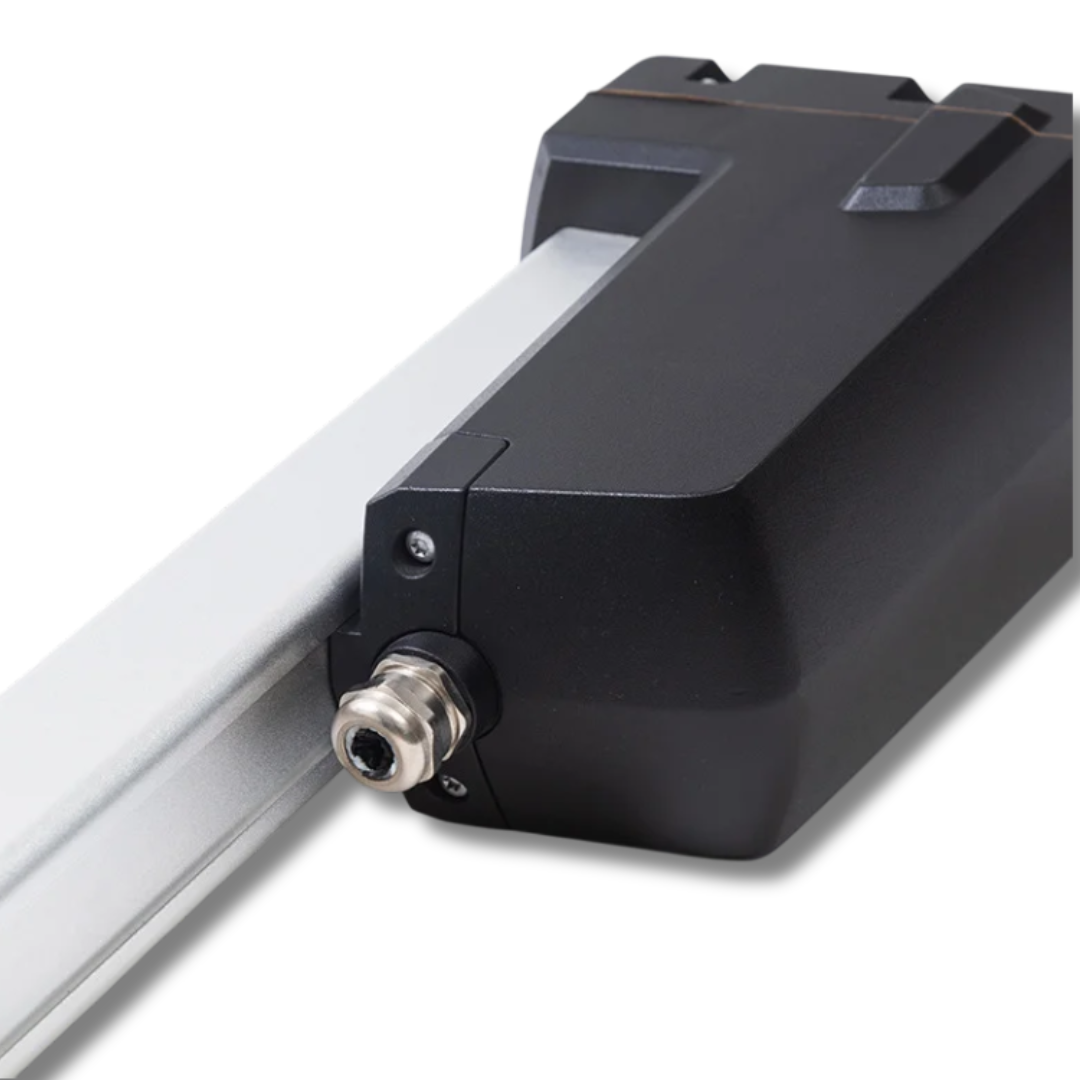

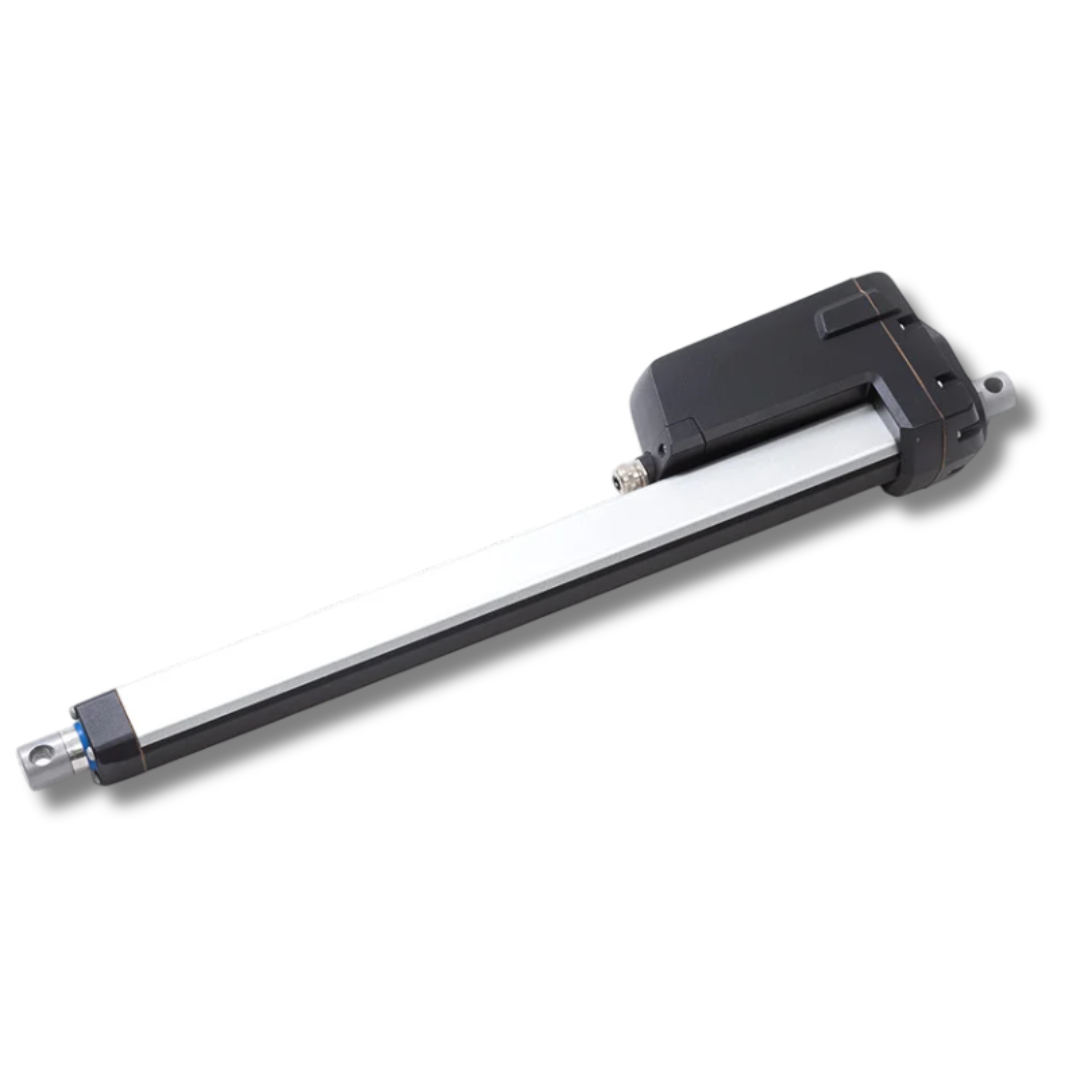

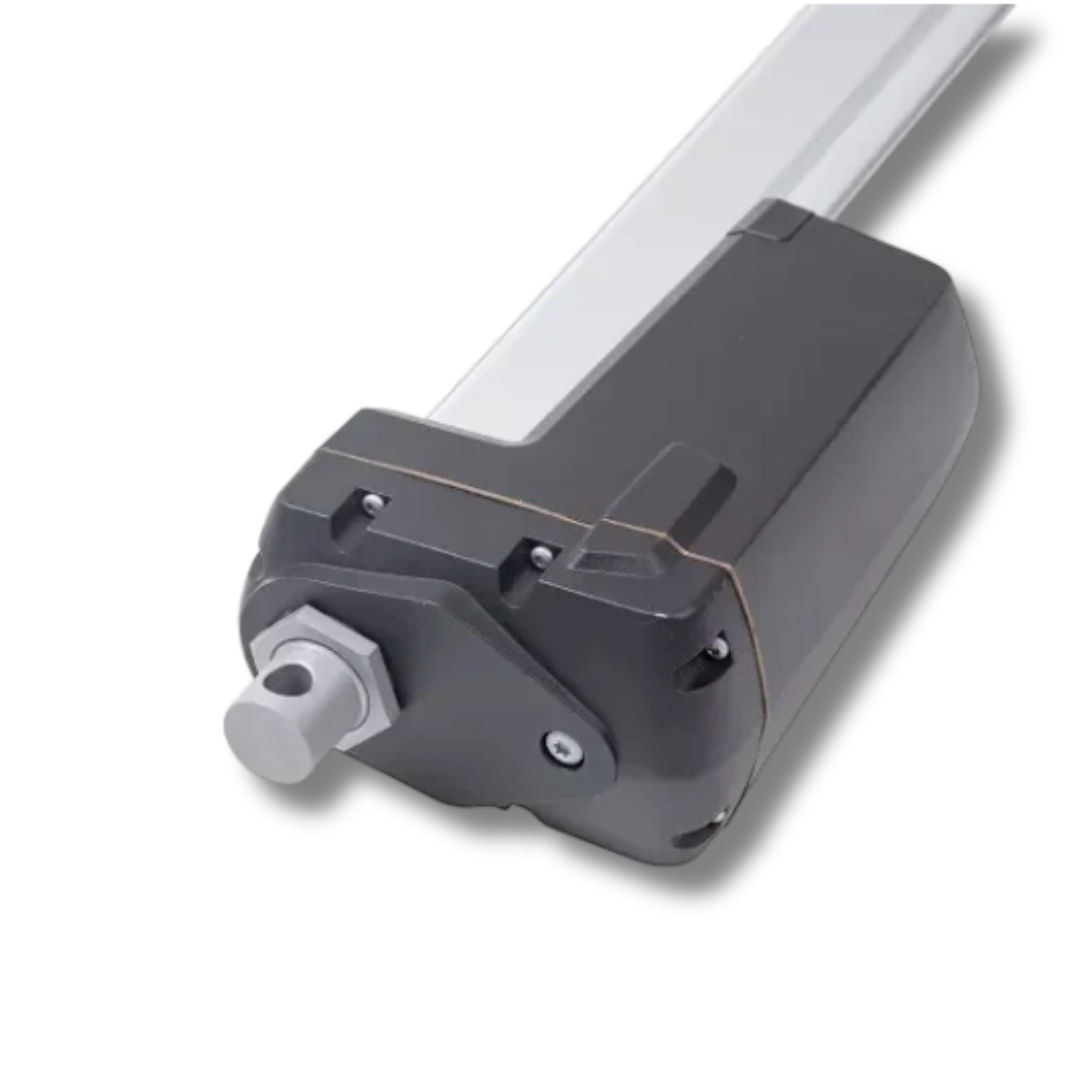

PAX-1200B
| Specification | Details |
|---|---|
|
Model |
PAX-1200B |
|
Input Voltage |
12V / 24V / 36V / 48V DC |
|
Stroke Length |
50mm – 1000mm (customizable in 50mm increments) |
|
Load Capacity |
3200N – 12000N (customizable) |
|
Maximum Dynamic Load |
12000N |
|
Travel Speed |
6mm/s to 37mm/s |
|
Limit Switch |
External and adjustable |
|
Duty Cycle |
25% (up to 4 minutes continuous operation) |
|
IP Rating |
IP66 – Waterproof and dustproof, suitable for harsh outdoor conditions |
|
Operating Temperature |
-40°C to +65°C |
|
Signal Feedback |
Potentiometer or Hall sensor |
|
Cable Length |
600mm |
|
Certification |
CE Certified |
|
Weight |
Approx. 9 kg |
Want to learn more?
Download the product datasheet for further details and information

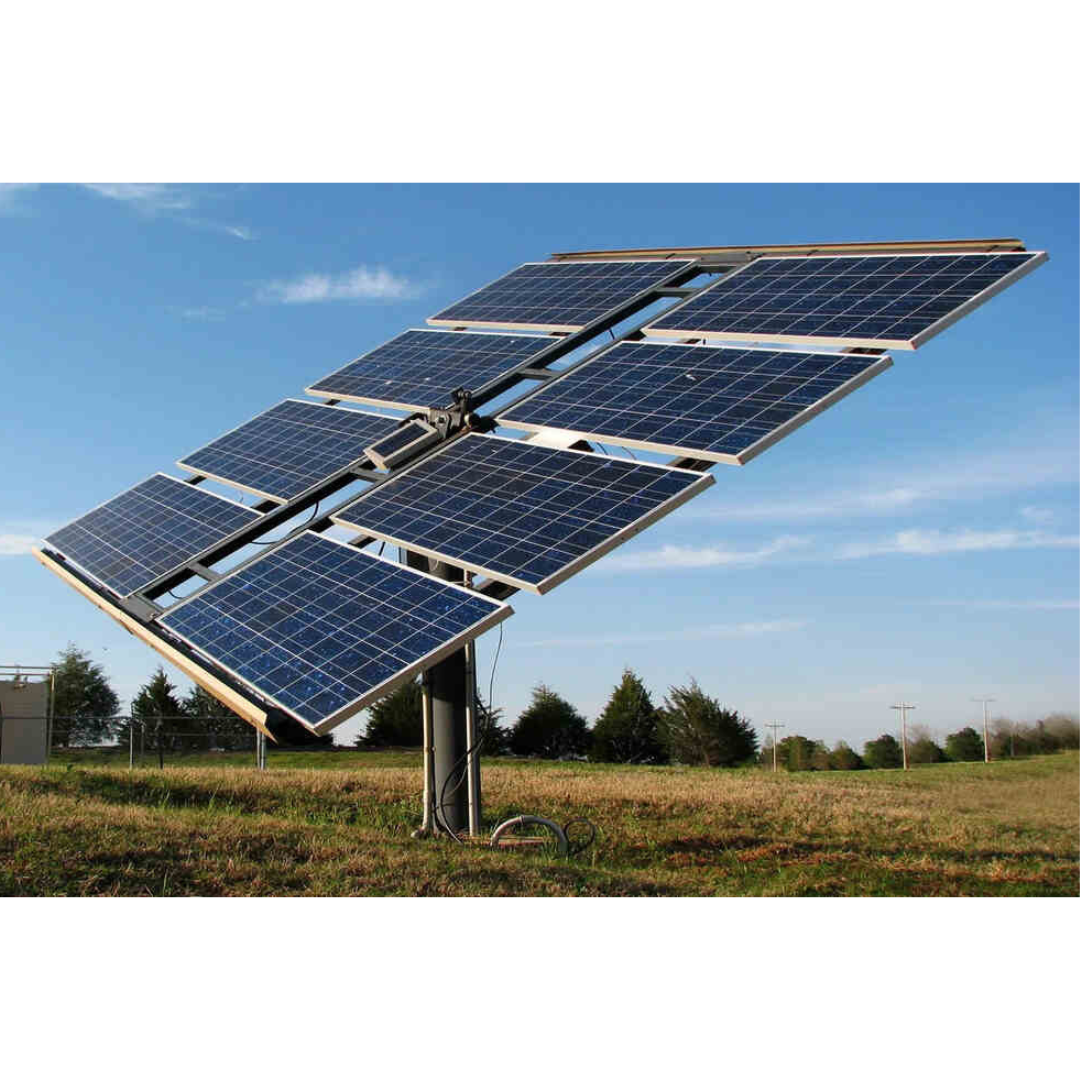

Solar Tracking Systems
This actuator improves solar energy output by automatically adjusting panel angles for maximum sun exposure throughout the day. Its robust construction ensures long-term reliability in outdoor environments.

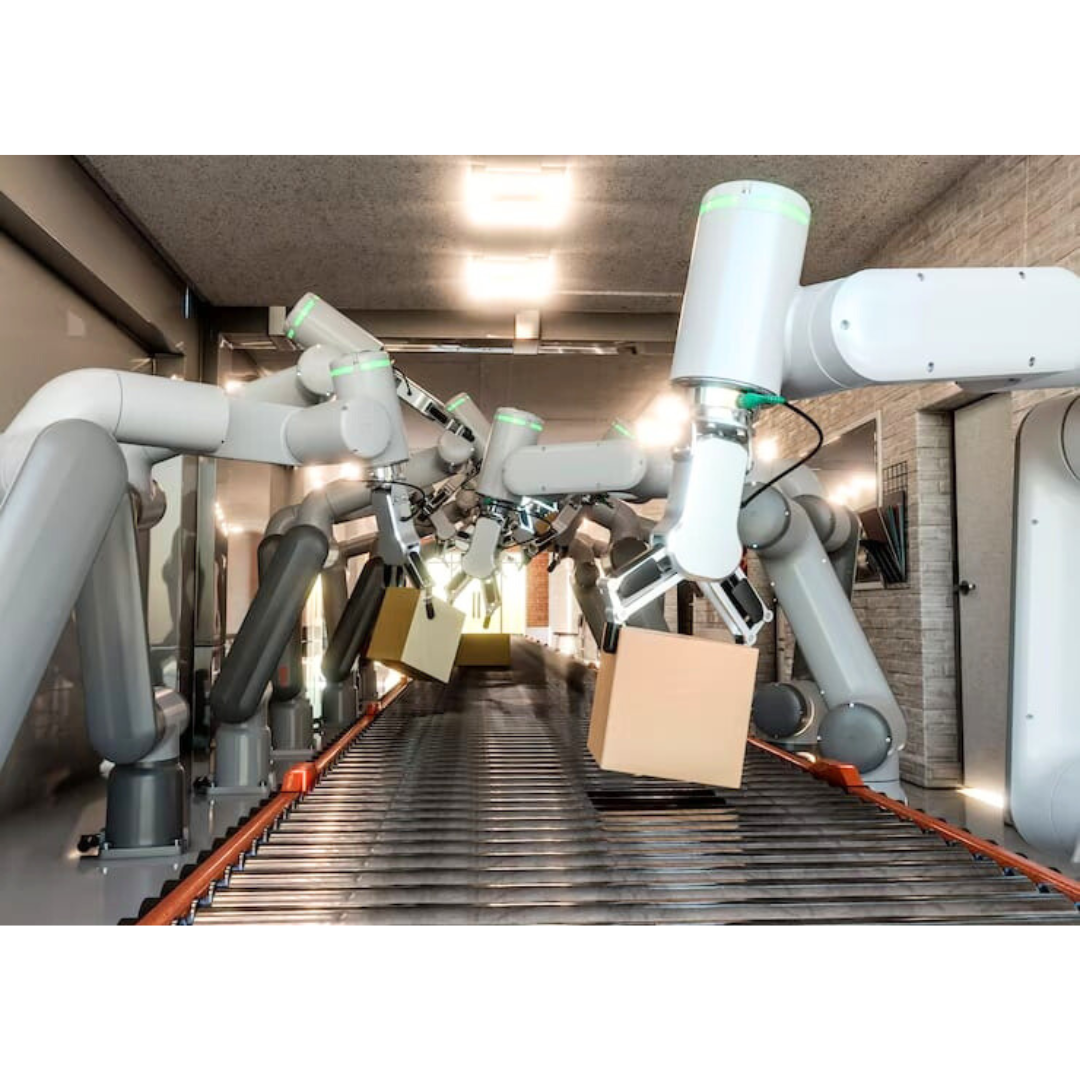

Industrial Automation
Ideal for use in automated systems, the actuator delivers accurate and repeatable linear motion, enhancing efficiency and precision across manufacturing and processing operations.
What is an electric linear actuator?
An electric linear actuator is a device that converts electrical energy into straight-line motion. Unlike a motor that creates rotation, a linear actuator pushes or pulls something along a single axis. It’s commonly used in adjustable beds, medical equipment, industrial machinery, and home automation to provide smooth and controlled movement. Electric actuators are known for being precise, quiet, and easy to integrate with control systems.
How do I choose the right linear actuator for my application?
To choose the right linear actuator, consider key factors such as required load capacity, stroke length, speed, voltage, and control method. For the PAX-1200B, it’s important to note its high thrust capacity of up to 6000N, making it well-suited for demanding applications like industrial lifting, medical equipment, and automation systems. Also ensure compatibility with your installation space and system requirements for optimal performance.
What safety features does the PAX-1200B include?
The PAX-1200B includes built-in limit switches to automatically stop movement at fully extended and retracted positions, preventing overtravel. It also features a self-locking mechanism that holds its position when powered off, enhancing safety in load-bearing applications. These features help ensure safe, reliable operation in both industrial and medical environments.
Can the PAX-1200B be customized to specific requirements?
Yes, PAX-1200B can be customized to meet your application needs. You can choose from various stroke lengths, speed options, and mounting styles. Custom wiring, connectors, and control compatibility can also be arranged to ensure seamless integration with your system.
