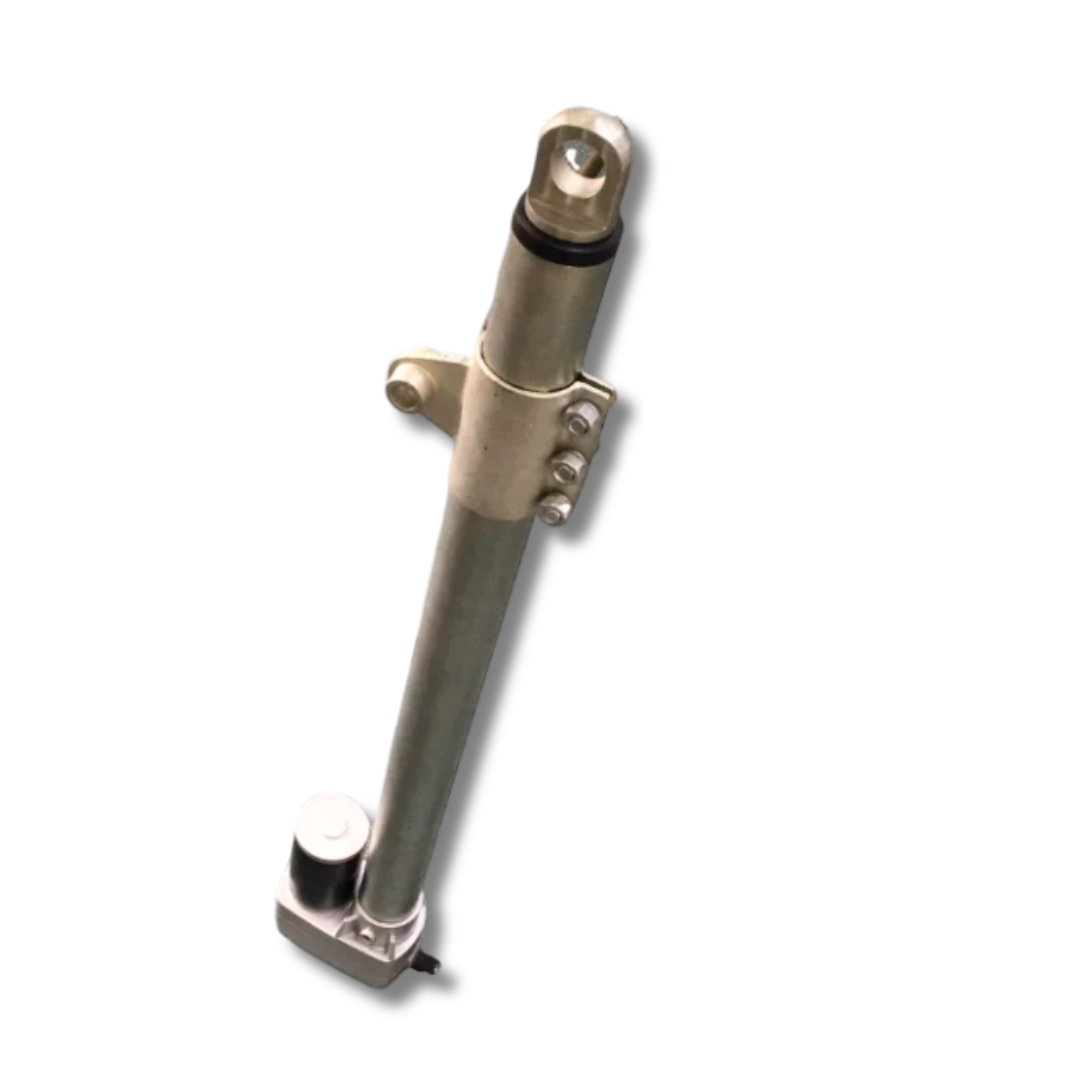

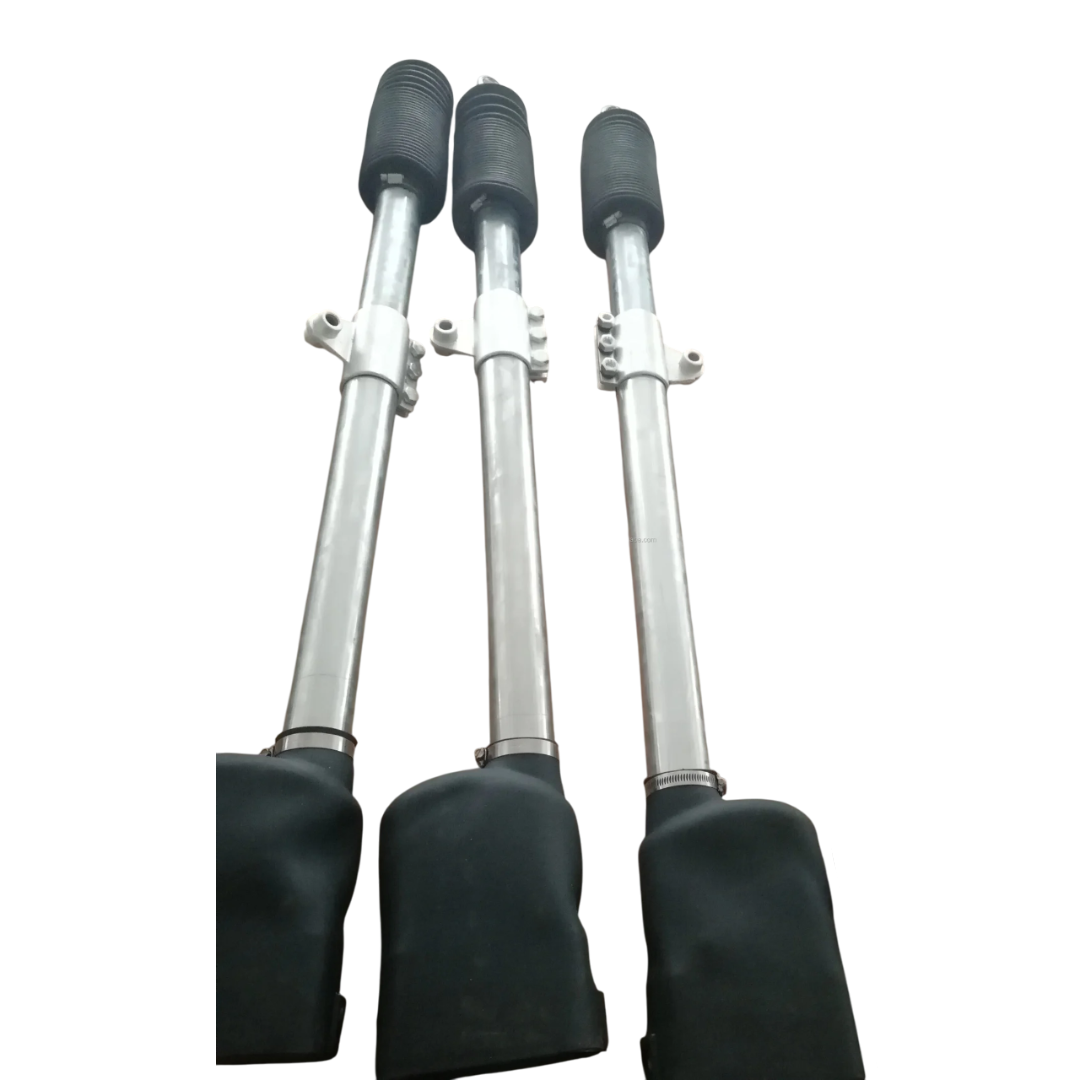

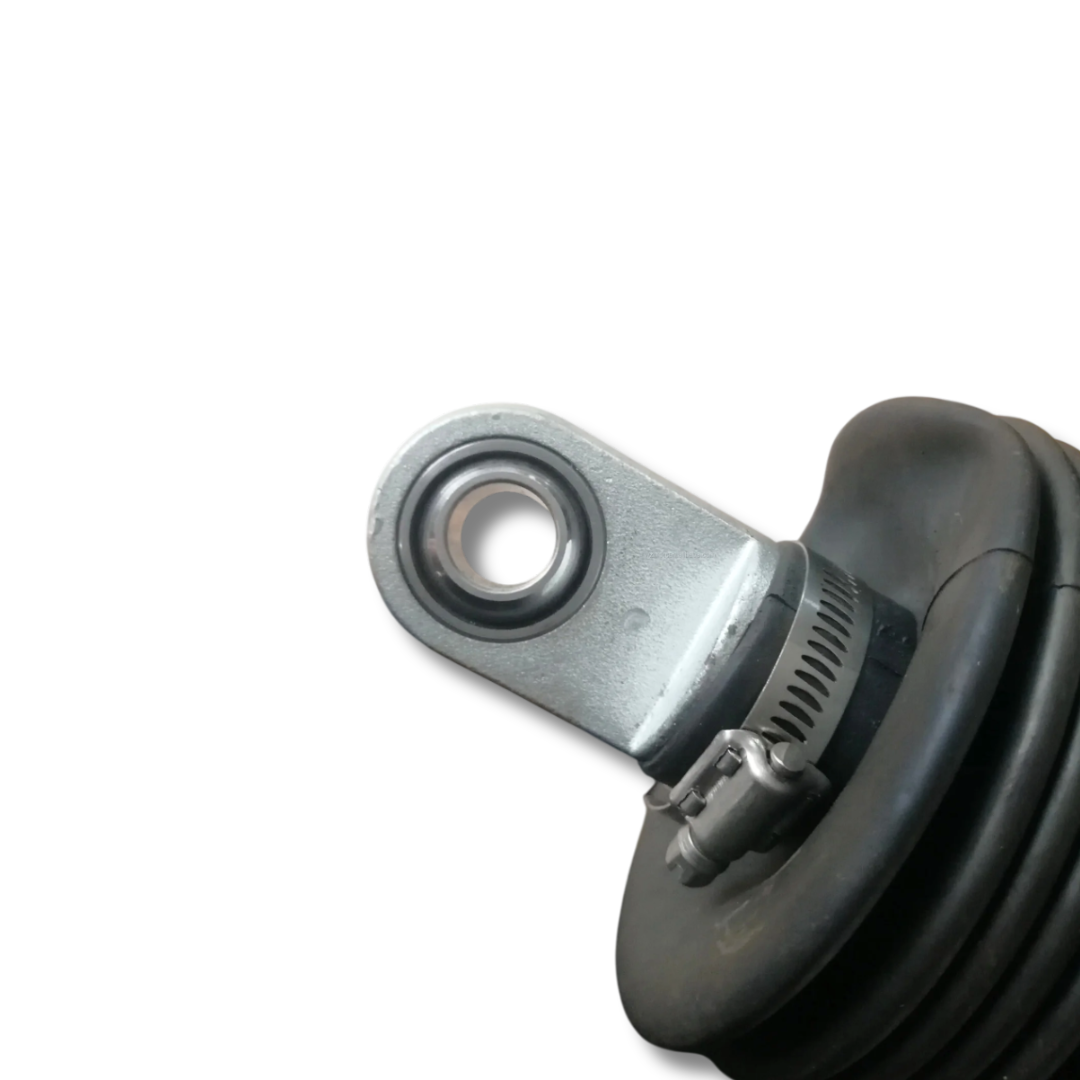

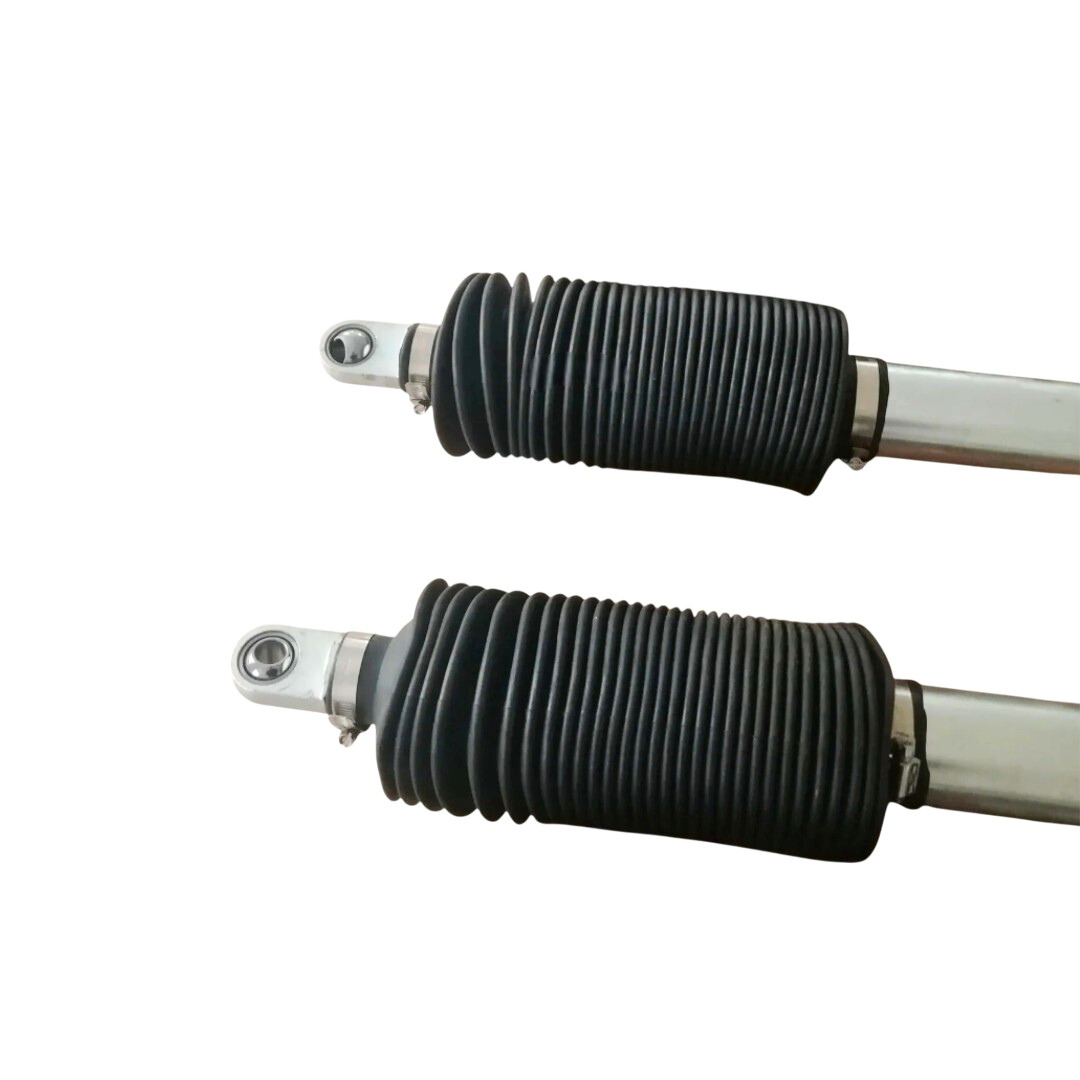

PAX-1500
| Specification | Details |
|---|---|
|
Model |
PAX-1500 |
|
Input Voltage |
12V / 24V / 36V / 48V DC |
|
No-Load Speed |
6.5 mm/s |
|
Load Speed |
2.5 mm/s to 3 mm/s |
|
Maximum Load |
10,000N (1,000 kg) / 15,000N (1,500 kg) |
|
Self-Locking Force |
30,000N (3,000 kg) |
|
Duty Cycle |
10% (2 min ON / 18 min OFF) |
|
Travel Switch |
Built-in inner travel switch |
|
Ambient Temperature |
-20°C to +65°C |
|
Waterproof Rating |
IP66 |
Want to learn more?
Download the product datasheet for further details and information
Electric Power
Used for accurate positioning and control in power distribution systems, improving operational efficiency and reliability.
Machinery
Enables seamless automation of industrial machinery, increasing precision and reducing manual intervention.
Metallurgy
Controls heavy equipment movement in metallurgical processes, ensuring accuracy and enhancing process efficiency.
Filling Systems
Regulates the positioning and flow of liquids or granules, supporting precise and automated filling operations.
Petroleum & Chemical Industry
Ensures safe valve control and pipeline management in complex chemical and oil systems.
Transportation
Facilitates automated loading and unloading in transport systems, improving logistics and material handling.
Lifting Equipment
Drives vertical motion in hoists and cranes, offering smooth, controlled lifting for heavy-duty applications.
Construction
Enhances construction machinery by allowing precise positioning and stable lifting of heavy materials.
Food Processing
Supports accurate control in food production lines, contributing to product consistency and hygiene standards.
What is an electric linear actuator?
An electric linear actuator is a device that converts electrical energy into straight-line motion. Unlike a motor that creates rotation, a linear actuator pushes or pulls something along a single axis. It’s commonly used in adjustable beds, medical equipment, industrial machinery, and home automation to provide smooth and controlled movement. Electric actuators are known for being precise, quiet, and easy to integrate with control systems.
How do I choose the right linear actuator for my application?
To choose the right linear actuator for a solar tracker, consider factors like load capacity, stroke length, speed, voltage, and control compatibility. The PAX-1500 is a powerful actuator with a 15,000N thrust, making it ideal for heavy-duty solar tracking systems. Its robust build, smooth motion, and outdoor durability ensure reliable performance in demanding solar applications.
What safety features does the PAX-1500 include?
The PAX-1500 linear actuator includes built-in limit switches to stop movement at the fully extended and retracted positions, preventing overtravel. It also has a strong self-locking mechanism (30,000N) to hold its position when power is off. With its IP66 waterproof rating, it ensures safe and reliable use in outdoor environments.
Can PAX-1500 be customized to specific requirements?
Yes, the PAX-1500 linear actuator can be customized to meet specific requirements. Options such as stroke length, input voltage, mounting style, and feedback sensors can be tailored based on your application needs. Customization ensures optimal performance for different solar tracking or industrial systems.
