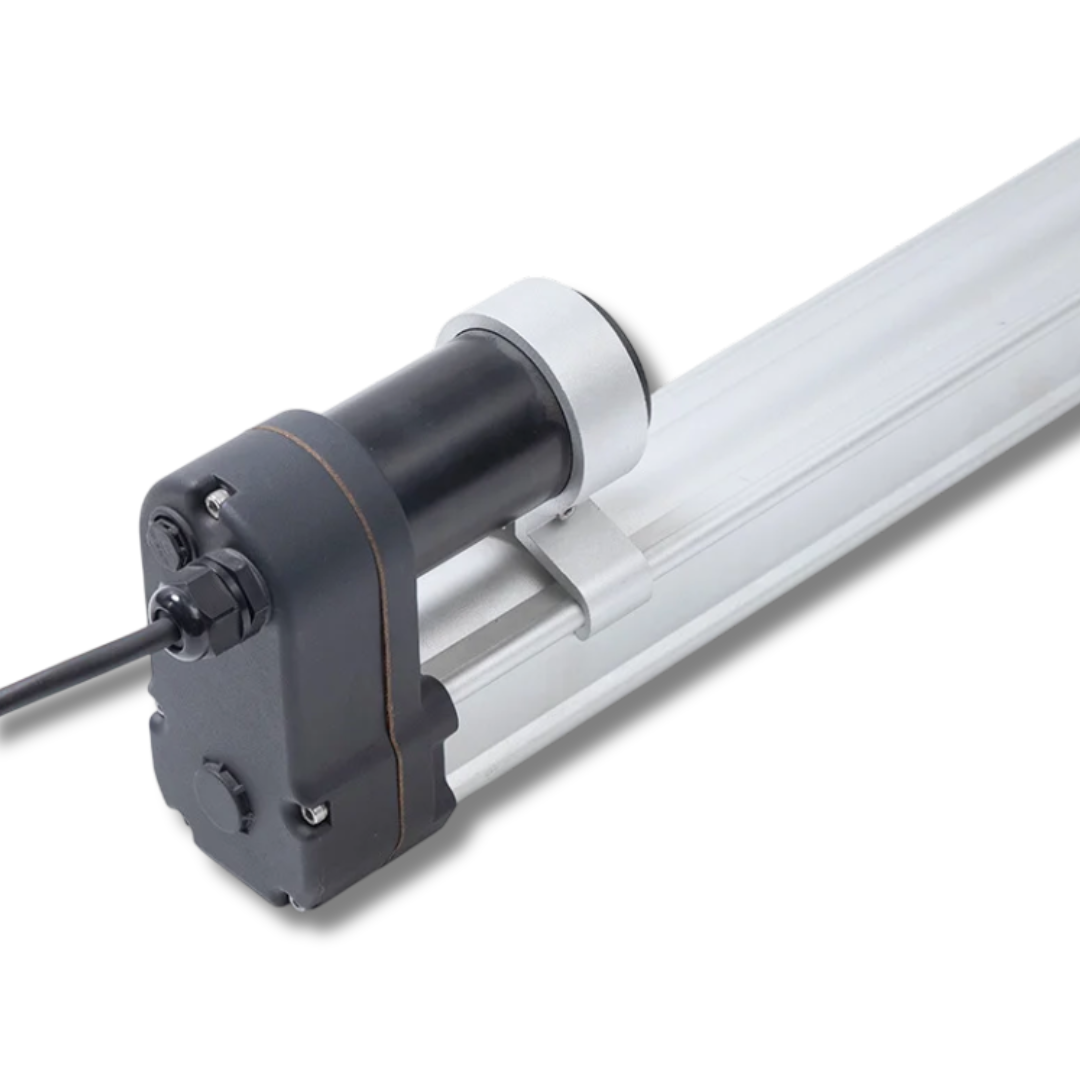

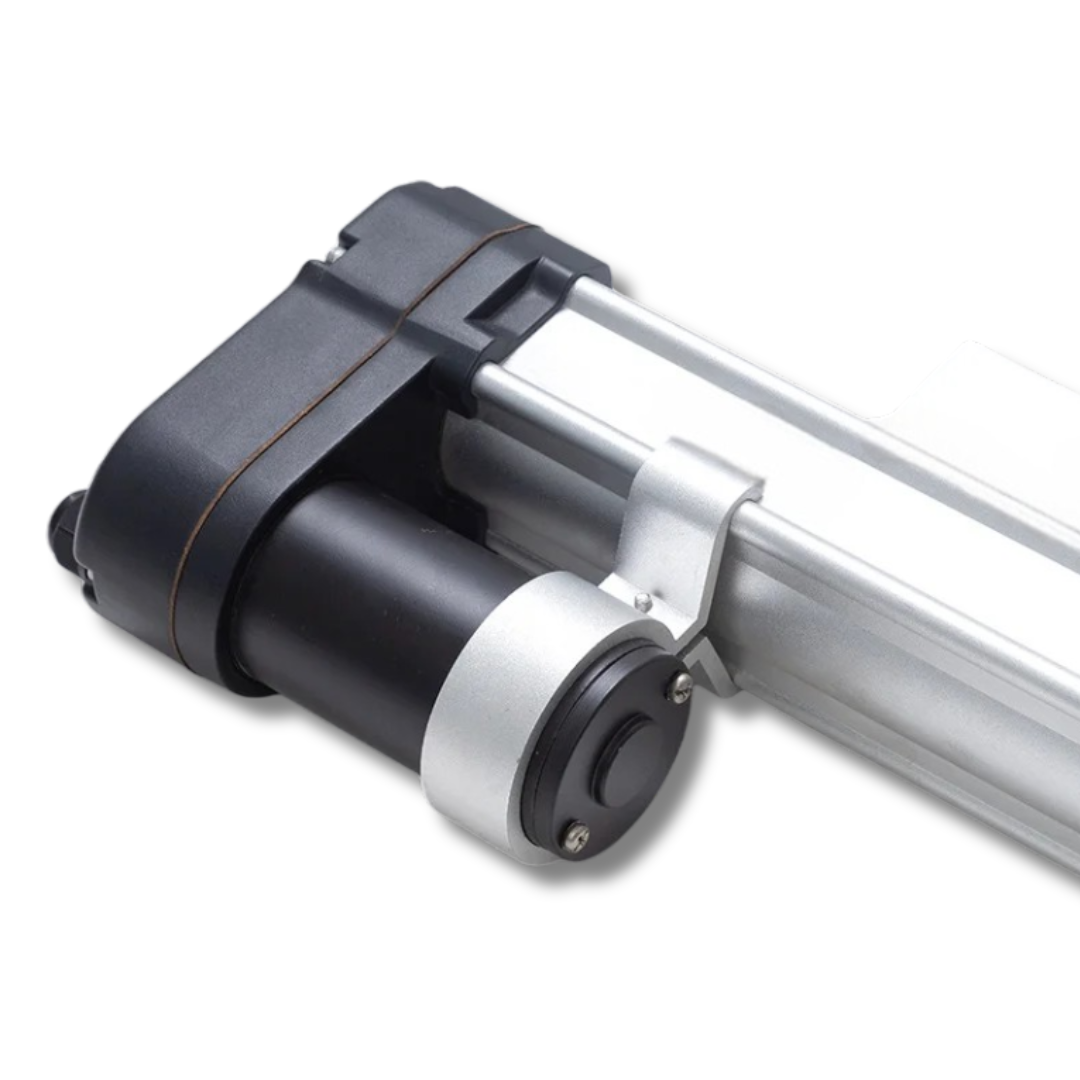

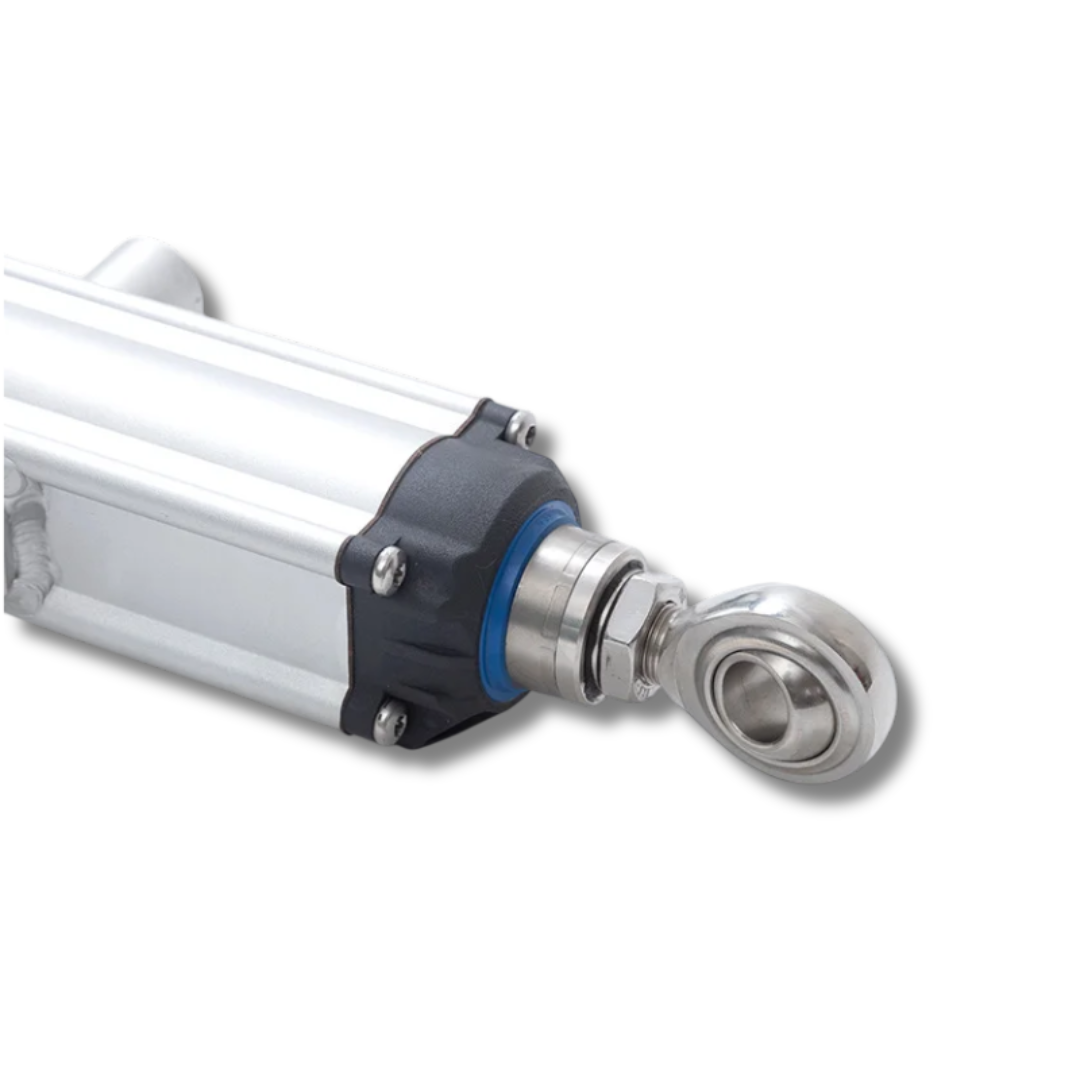

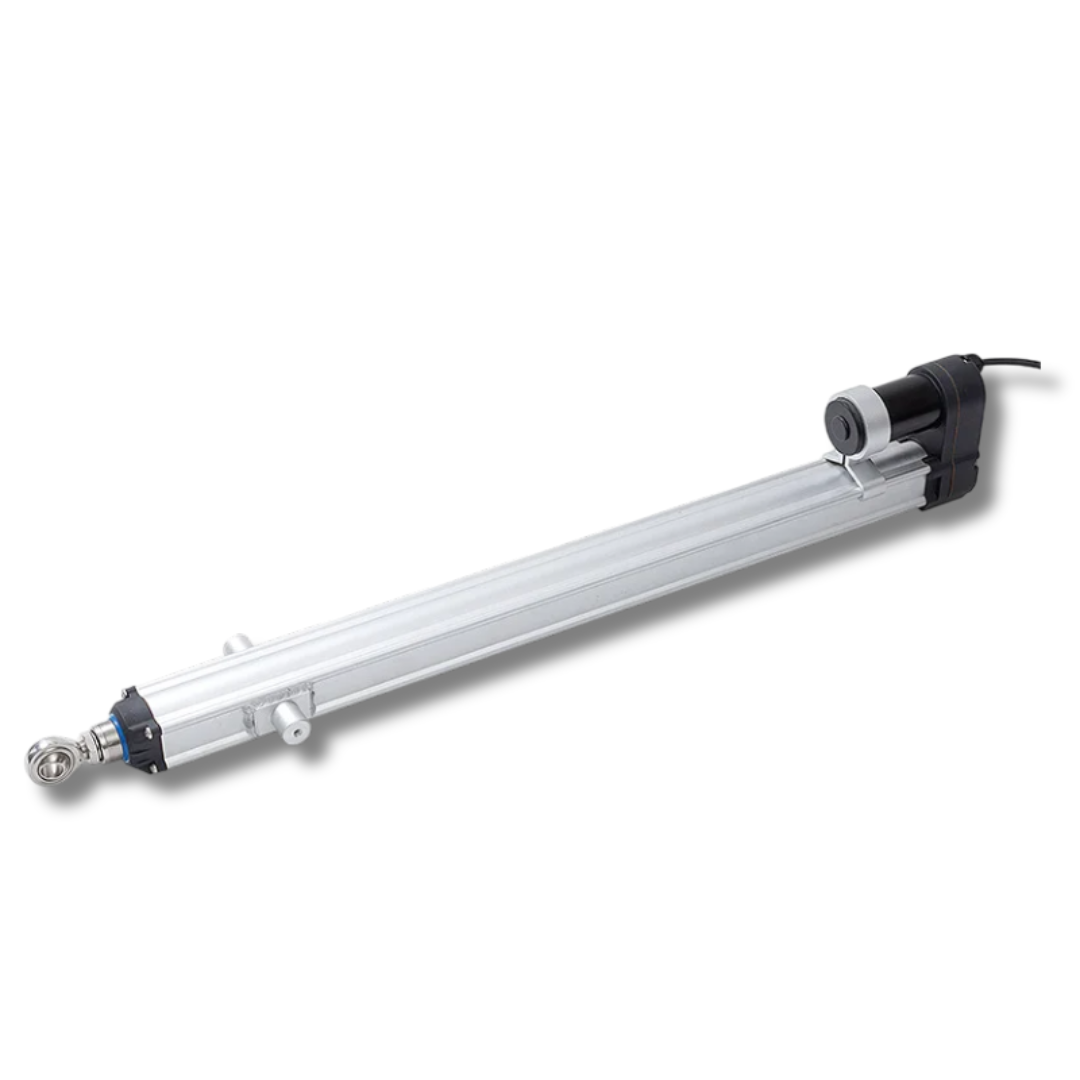

PAX-1500B
| Specification | Details |
|---|---|
|
Model |
PAX-1500B |
|
Voltage |
12V/24V DC |
|
Load Capacity |
10KN, 12KN, or 15KN (custom options available) |
|
Static Load |
45000N |
|
Tested Wind Load |
15KN, tested for 80,000 cycles |
|
Speed Options |
1.4mm/s, 2.0mm/s, or 3.0mm/s |
|
Stroke Length |
50mm to 1200mm (customizable) |
|
Limit Switch |
Built-in or external magnetic switch |
|
Waterproof Rating |
IP66 (for outdoor use) |
|
Position Feedback |
Hall sensor supported |
|
Working Duty |
12% at full load |
|
Cable Length |
500–800mm (custom lengths available) |
|
Working Temperature |
-30°C to +70°C |
|
Noise Level |
Less than 56dB |
|
Design Life |
Up to 25 years |
|
Certification |
CE Approved |
|
Weight |
8kg to 20kg (based on configuration) |
Want to learn more?
Download the product datasheet for further details and information
Solar Panel
Positioning
Used for accurate positioning and control in power distribution systems, improving operational efficiency and reliability.
Renewable Energy
Systems
Enables seamless automation of industrial machinery, increasing precision and reducing manual intervention.
Harsh Environment Operations
Controls heavy equipment movement in metallurgical processes, ensuring accuracy and enhancing process efficiency.
What is an electric linear actuator?
An electric linear actuator is a device that converts electrical energy into straight-line motion. Unlike a motor that creates rotation, a linear actuator pushes or pulls something along a single axis. It’s commonly used in adjustable beds, medical equipment, industrial machinery, and home automation to provide smooth and controlled movement. Electric actuators are known for being precise, quiet, and easy to integrate with control systems.
How do I choose the right linear actuator for my application?
To choose the right linear actuator for a solar tracker, consider factors like load capacity, stroke length, speed, voltage, and control compatibility. The PAX-1500B is a powerful actuator with a 15,000N thrust, making it ideal for heavy-duty solar tracking systems. Its robust build, smooth motion, and outdoor durability ensure reliable performance in demanding solar applications.
What safety features does the PAX-1500B include?
The PAX-1500B linear actuator includes built-in limit switches to stop movement at the fully extended and retracted positions, preventing overtravel. It also has a strong self-locking mechanism (30,000N) to hold its position when power is off. With its IP66 waterproof rating, it ensures safe and reliable use in outdoor environments.
Can the PAX-1500B be customized to specific requirements?
Yes, the PAX-1500B linear actuator can be customized to meet specific requirements. Options such as stroke length, input voltage, mounting style, and feedback sensors can be tailored based on your application needs. Customization ensures optimal performance for different solar tracking or industrial systems.
