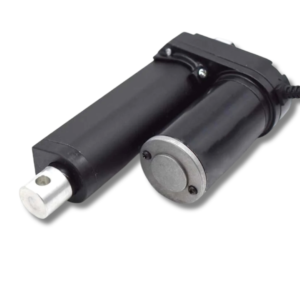

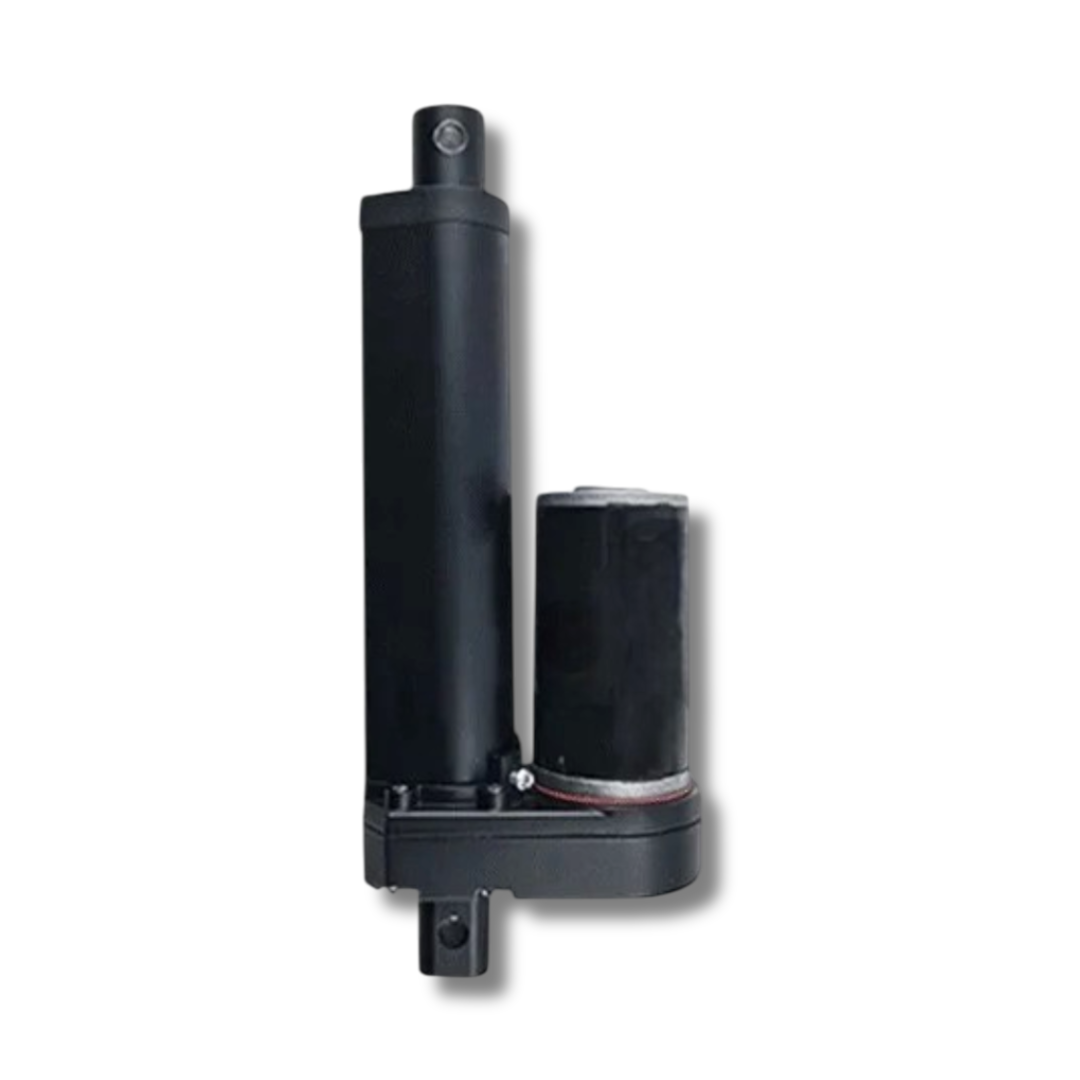

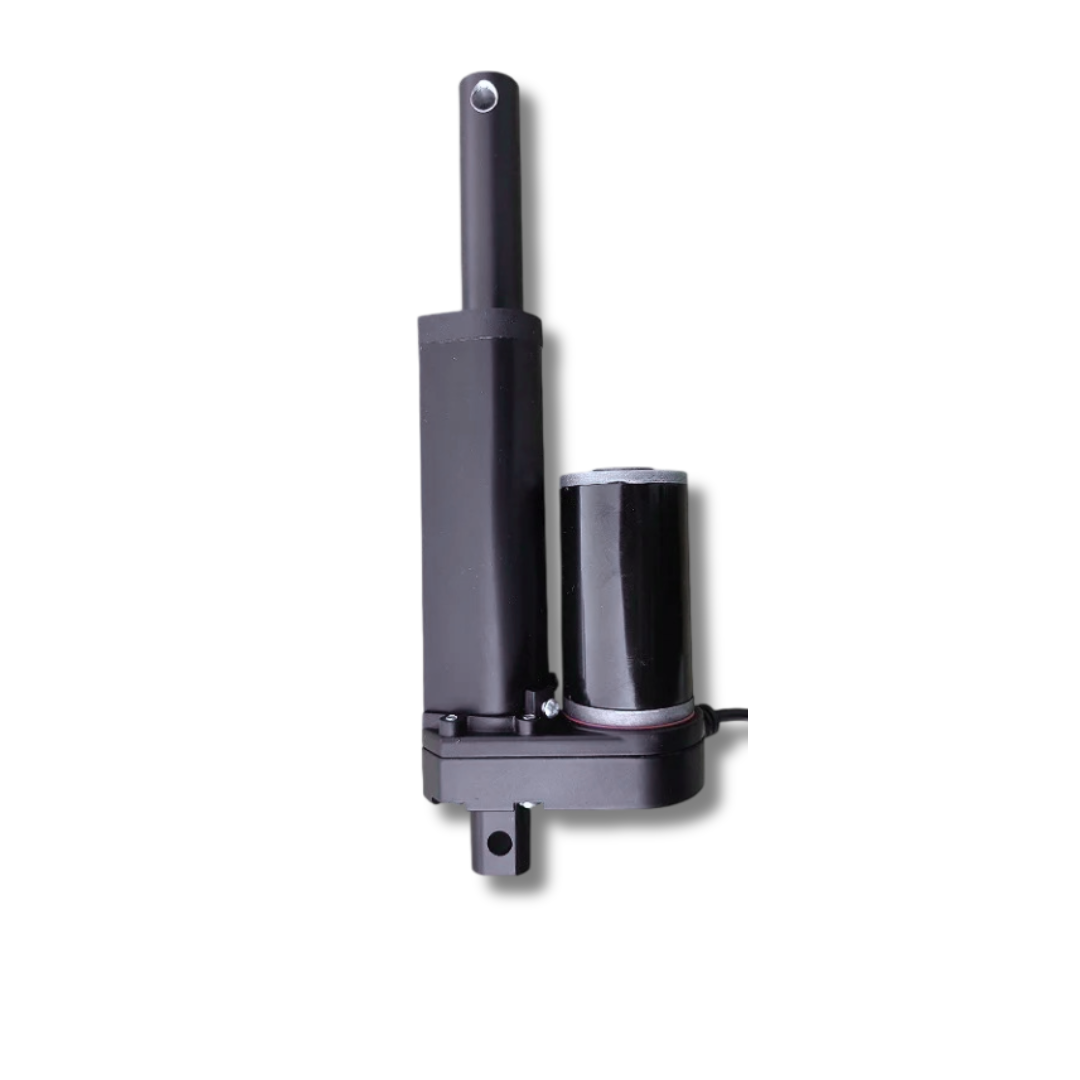

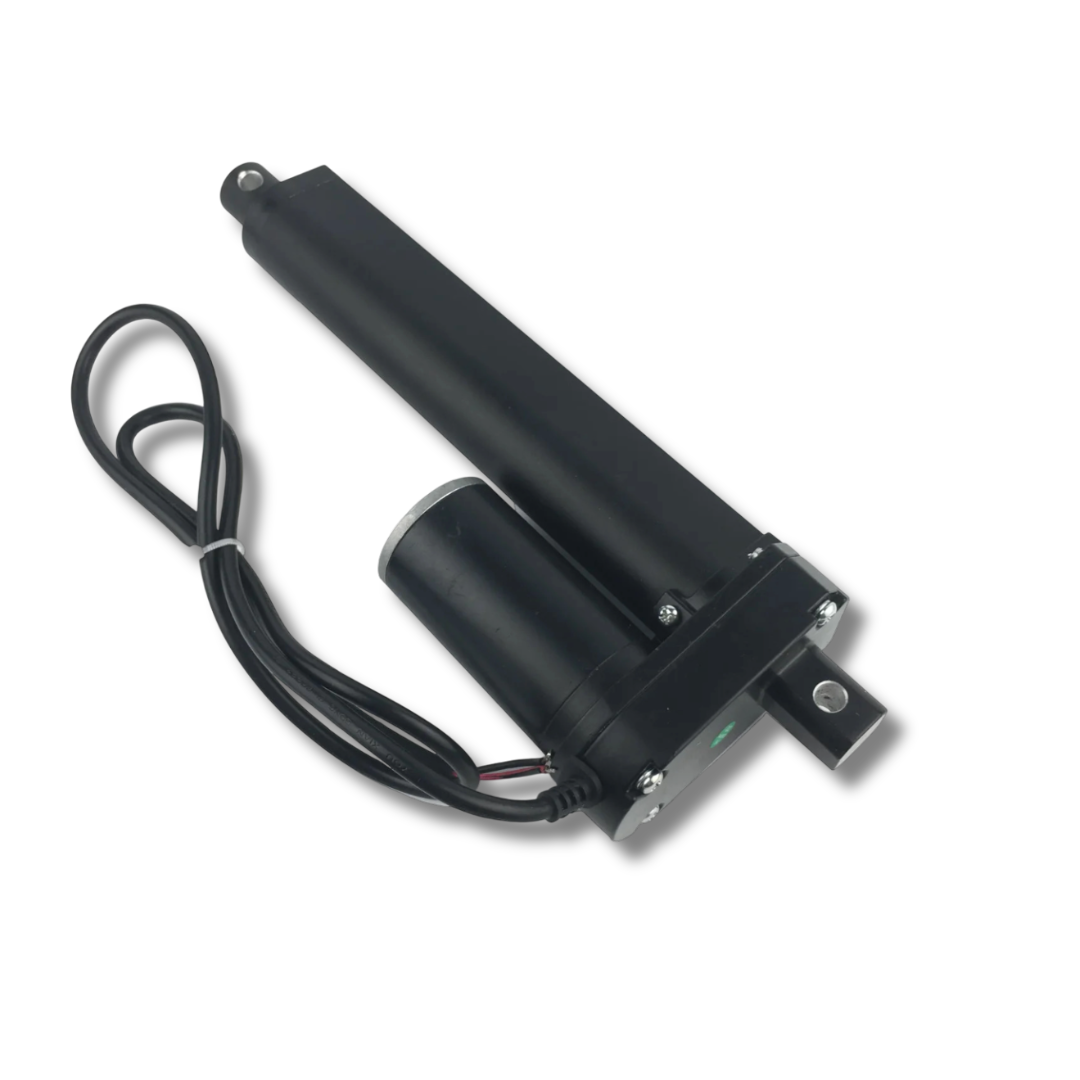

PAX-0600
| Specification | Details |
|---|---|
|
Model |
PAX-0600 |
|
Maximum Thrust |
3500N |
|
Input Voltage |
12V / 24V DC |
|
Stroke Range |
50mm – 1000mm |
|
Speed (No Load) |
5 – 60 mm/s (varies by load & gear) |
|
Noise Level |
≤ 42 dB |
|
Limit Switches |
Built-in (non-adjustable) |
|
Protection Level |
IP54 |
|
Duty Cycle |
10% at full load |
|
Working Temperature |
-26°C to +65°C |
|
Installation |
Easy mounting with clevis ends |
|
Optional Features |
Hall sensors, customized stroke |
Want to learn more?
Download the product datasheet for further details and information

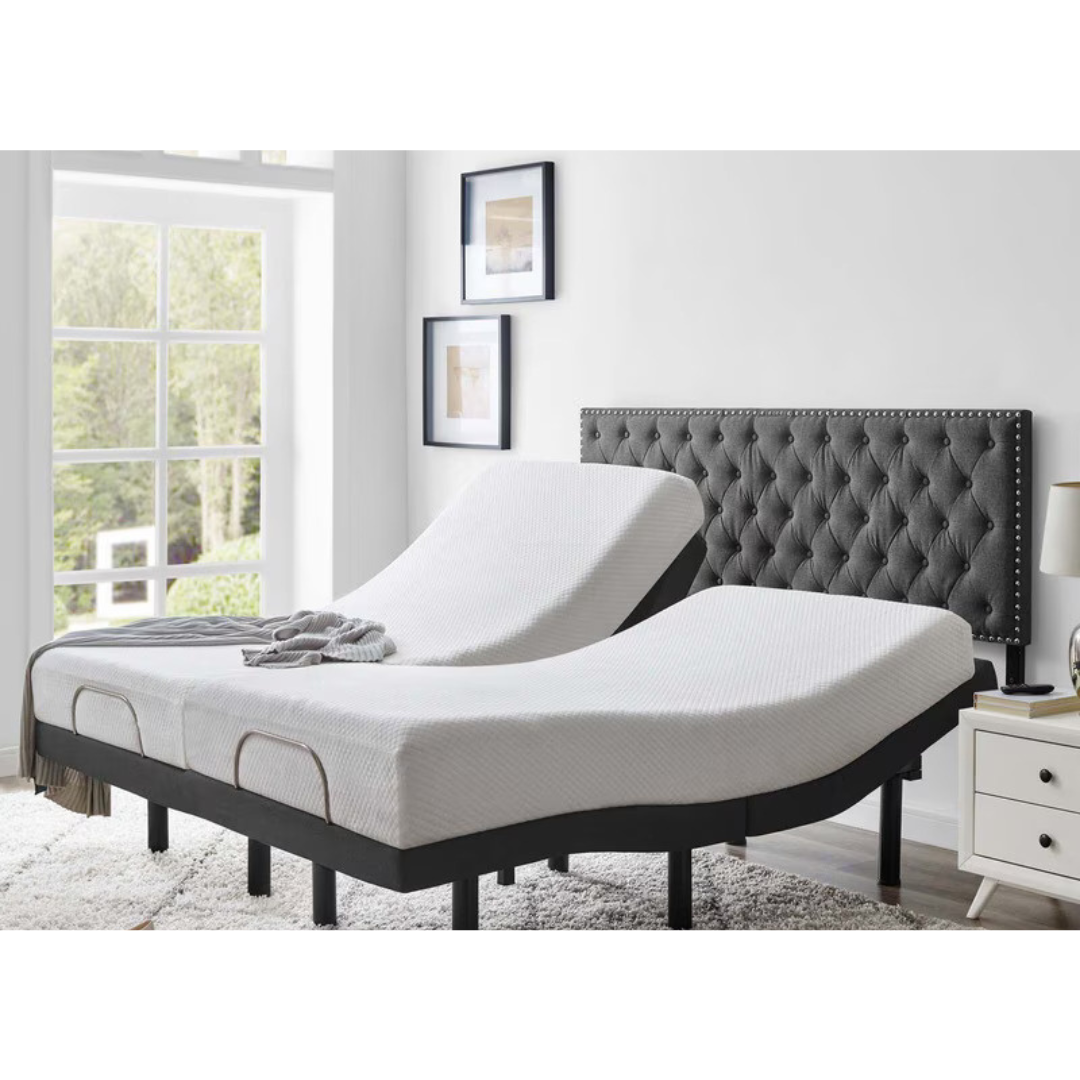

Electric Intelligent Bed
The actuator enables smooth, multi-position adjustments in electric intelligent beds, enhancing user comfort and supporting better sleep posture. It allows users to elevate the head, legs, or entire bed with ease using a remote or app control.
Electric Medical Bed
In electric medical beds, the actuator helps adjust height and positioning for patient care, improving both safety and accessibility. It assists caregivers in repositioning patients effortlessly while enhancing the overall medical experience.
Electric Recliner
The actuator is used to recline and lift the seat back or footrest in electric recliners, providing comfort and support to the user. It delivers quiet, controlled motion ideal for home, theater, or medical recliners.
Electric Lifting Table
The actuator powers vertical adjustments in electric lifting tables, allowing users to shift between sitting and standing positions. It’s ideal for ergonomic workstations and adjustable desks in both office and industrial environments.

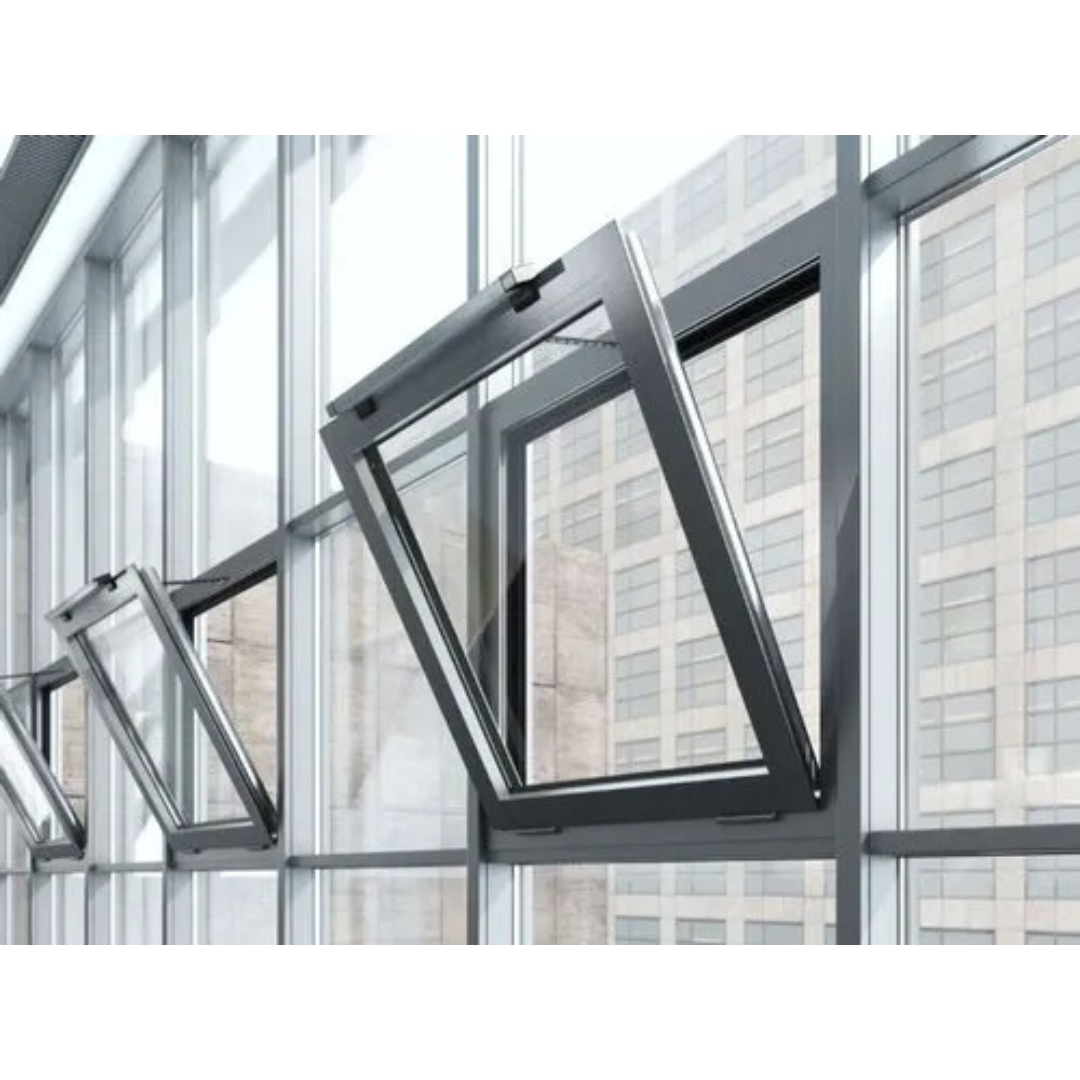

Electric Window
The actuator automates the opening and closing of windows in smart homes, vehicles, or industrial spaces. It offers secure and weather-resistant movement control with minimal noise and high precision.
What is an electric linear actuator?
An electric linear actuator is a device that converts electrical energy into straight-line motion. Unlike a motor that creates rotation, a linear actuator pushes or pulls something along a single axis. It’s commonly used in adjustable beds, medical equipment, industrial machinery, and home automation to provide smooth and controlled movement. Electric actuators are known for being precise, quiet, and easy to integrate with control systems.
How do I choose the right linear actuator for my application?
To choose the right linear actuator, consider the load capacity, speed, and stroke length required for your application. Check the input voltage, duty cycle, and environmental conditions such as temperature, dust, or moisture. Features like built-in limit switches, IP ratings, or feedback systems may also be important depending on your use case.
What safety features does the PAX-0600 include?
The PAX-0600 includes built-in limit switches to prevent overextension and ensure safe operation. It also features an IP54 rating, offering protection against dust and water splashes for reliable performance in various environments.
Can the PAX-0600 be customized to specific requirements?
Yes, the PAX-0600 Linear Actuator can be customized to meet specific requirements, including stroke length, speed, voltage, mounting options, and additional features like Hall sensors. Please contact us with your specifications for tailored solutions.
