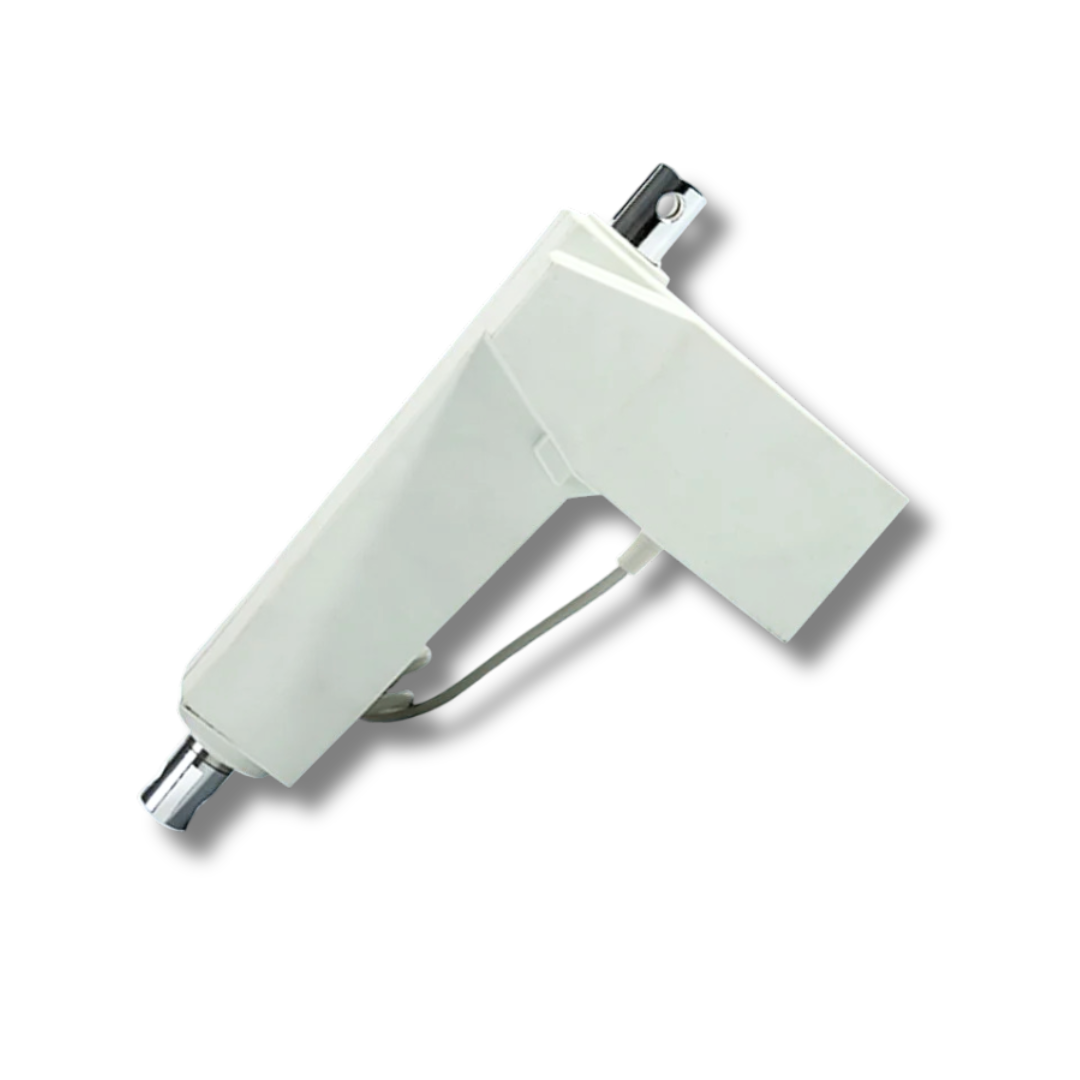

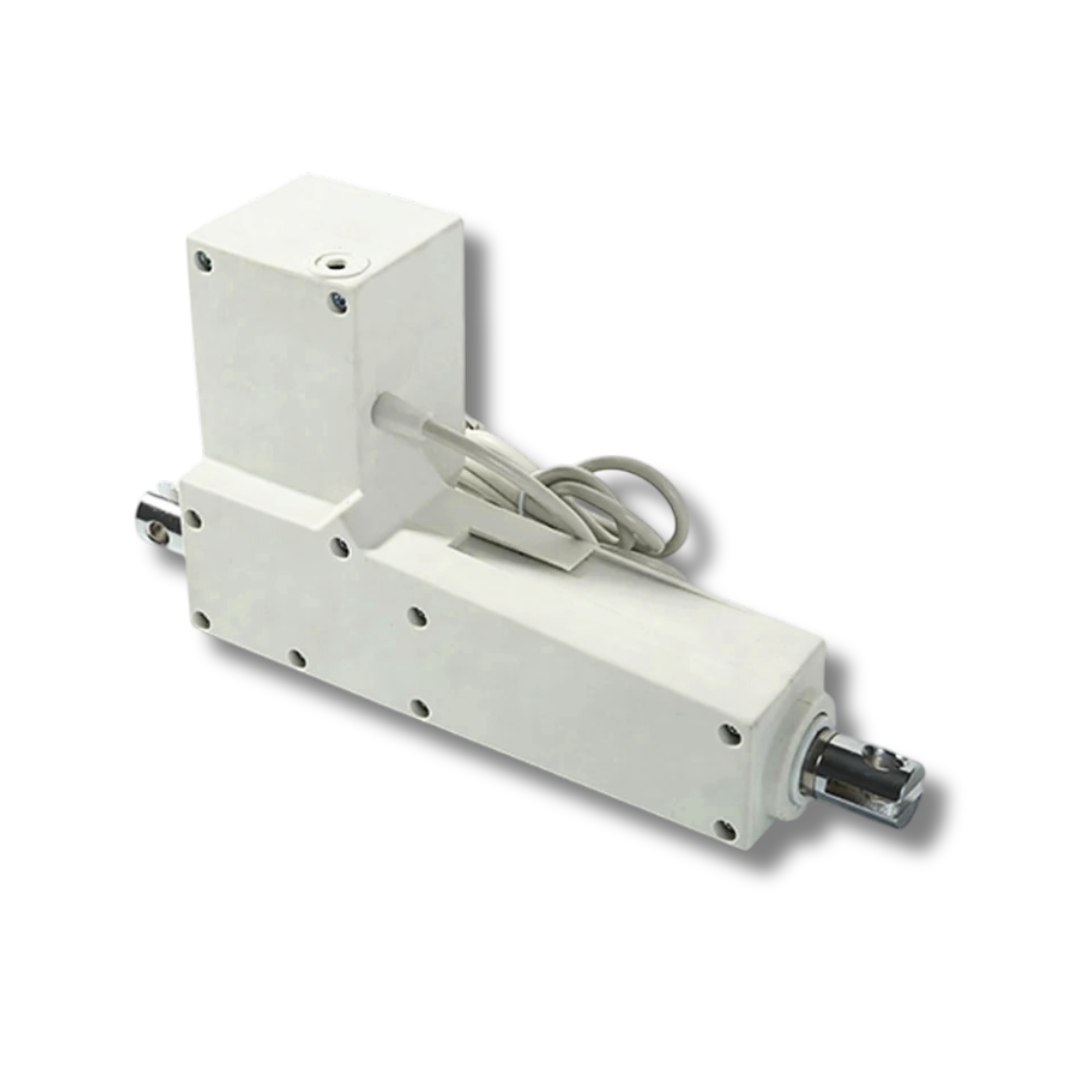

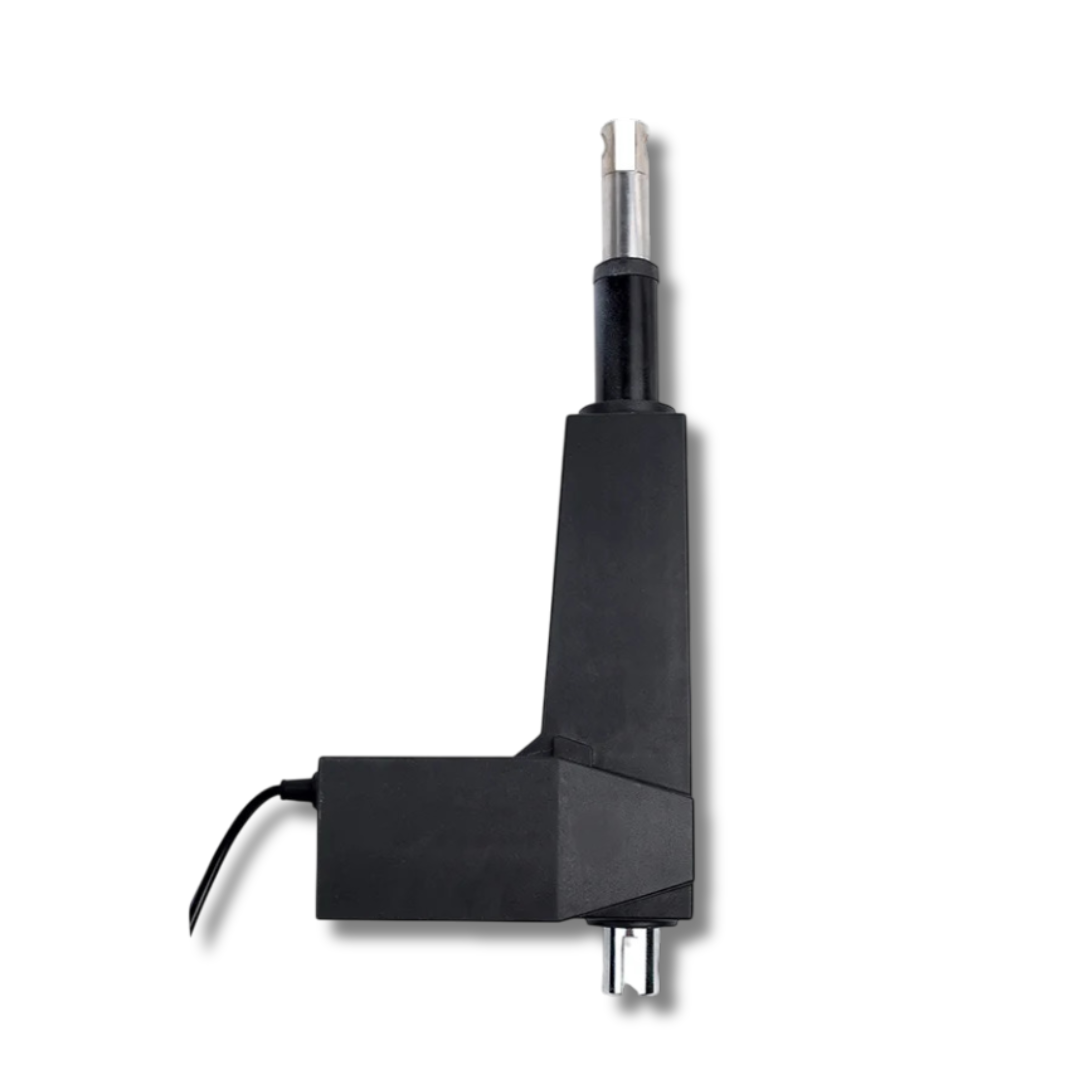

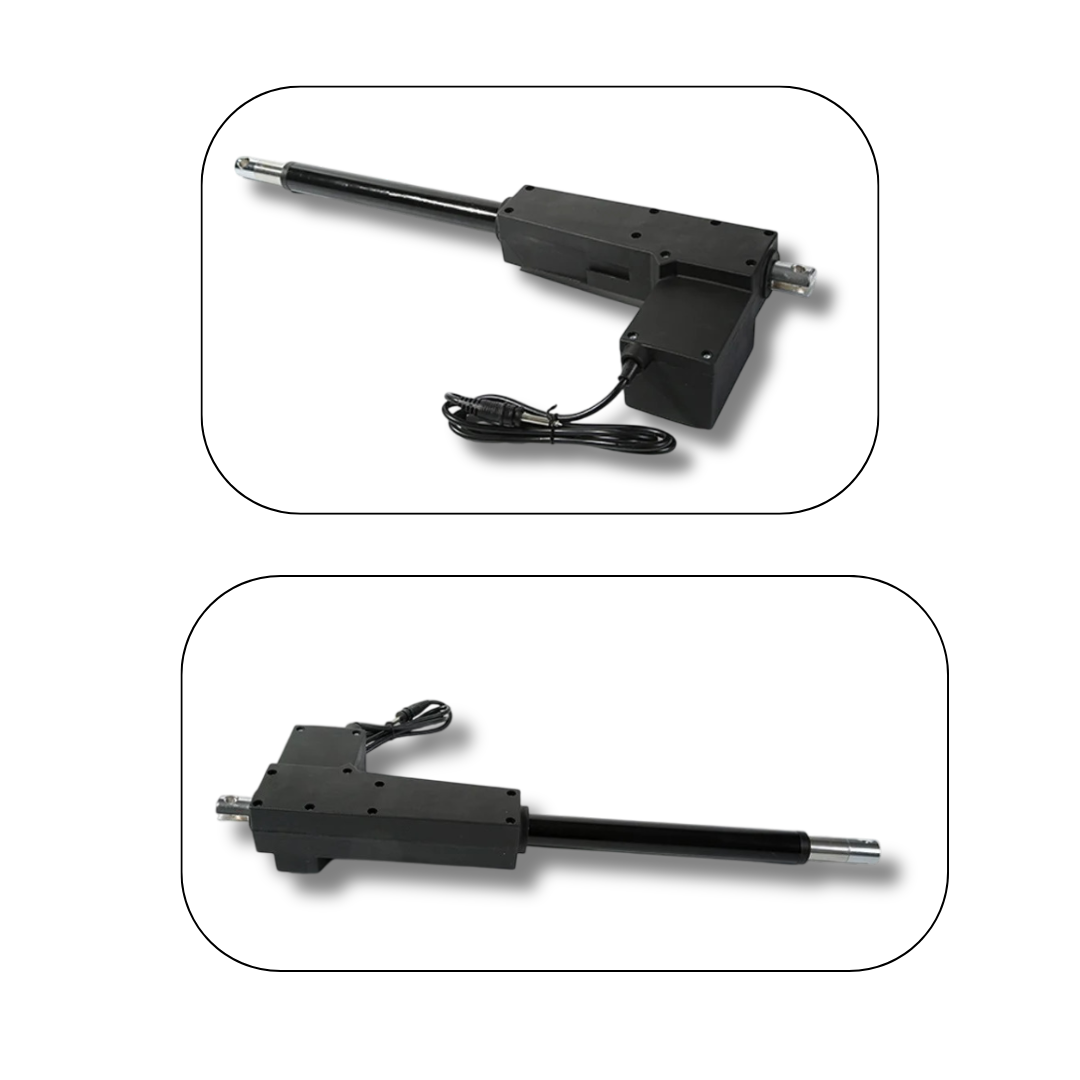

PAX-0700
| Specification | Details |
|---|---|
|
Input Voltage |
12VDC / 24VDC |
|
Maximum Load |
8000N |
|
Maximum Current |
2.5 A (24V) / 5 A (12V) |
|
Motor Output |
60W
|
|
Maximum Speed |
36mm/s |
|
Stroke Length |
50mm – 800mm (customizable) |
|
Protection Level |
IP54 |
|
Operating Temperature |
-4°F to 145°F (-20°C to 65°C) |
|
Color |
Silver + Black |
|
Limit Switch |
Built-in |
|
Screw Type |
T Type |
|
Service Cycle |
10% duty cycle, up to 2 hours continuous work |
|
Product Certification |
CE Certified |
|
Mechanical Life |
Over 30,000 cycles |
Want to learn more?
Download the product datasheet for further details and information

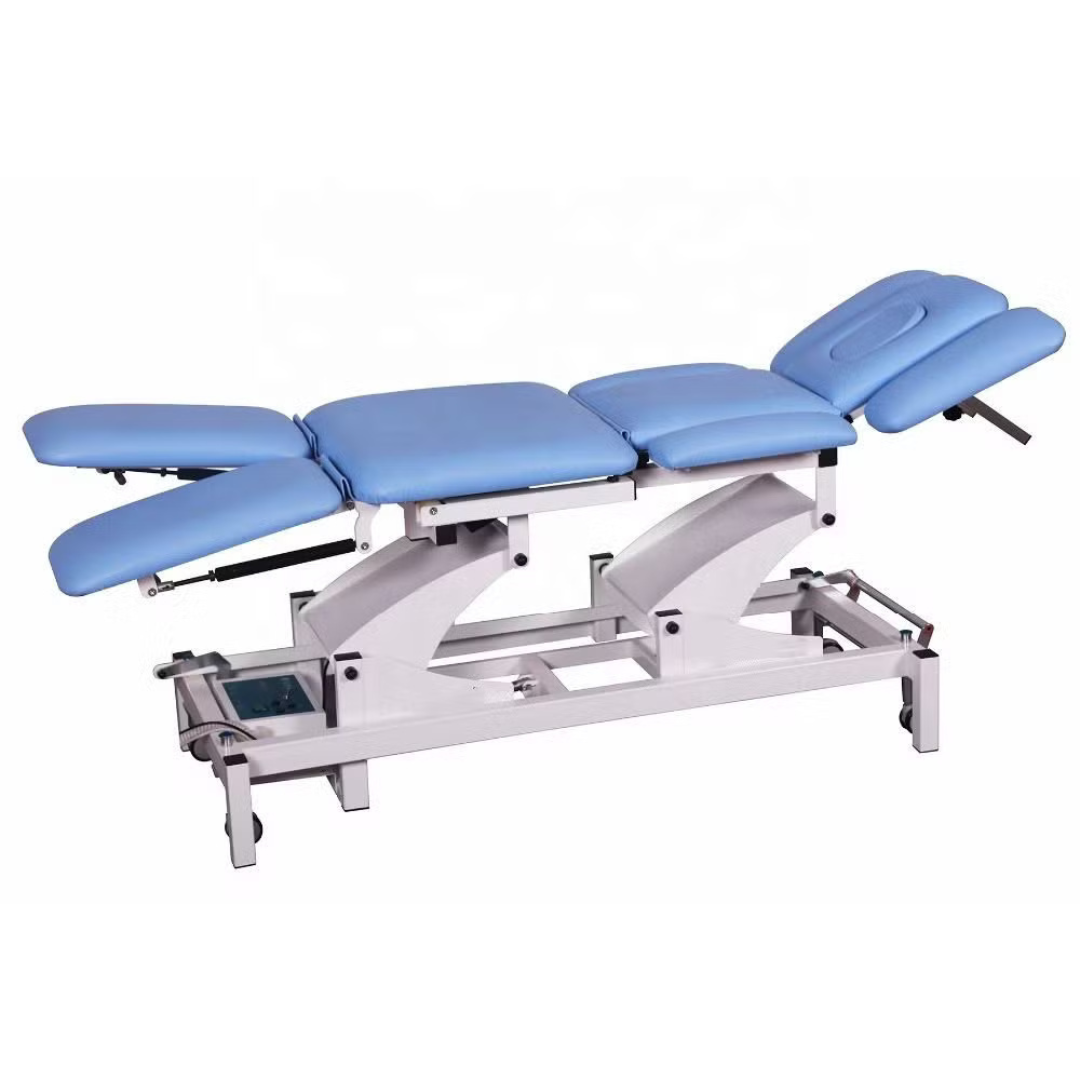

Electric Therapy Tables
The actuator enables smooth and accurate height and angle adjustments, enhancing patient comfort and therapist efficiency. Its quiet operation is ideal for medical and wellness environments.

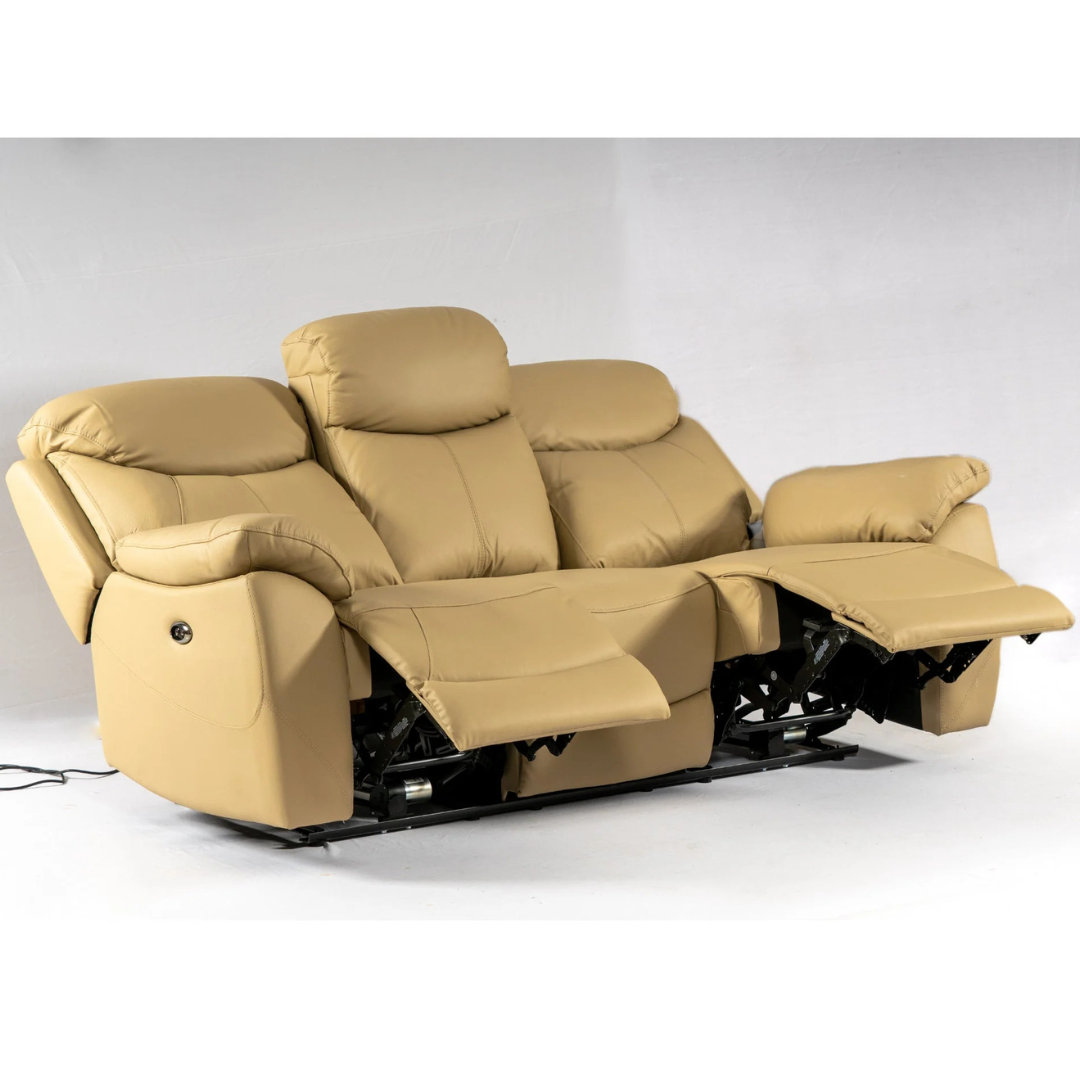

Electric Sofas
Provides customizable positioning for maximum seating comfort. The actuator operates silently, making it perfect for home and commercial lounge settings.

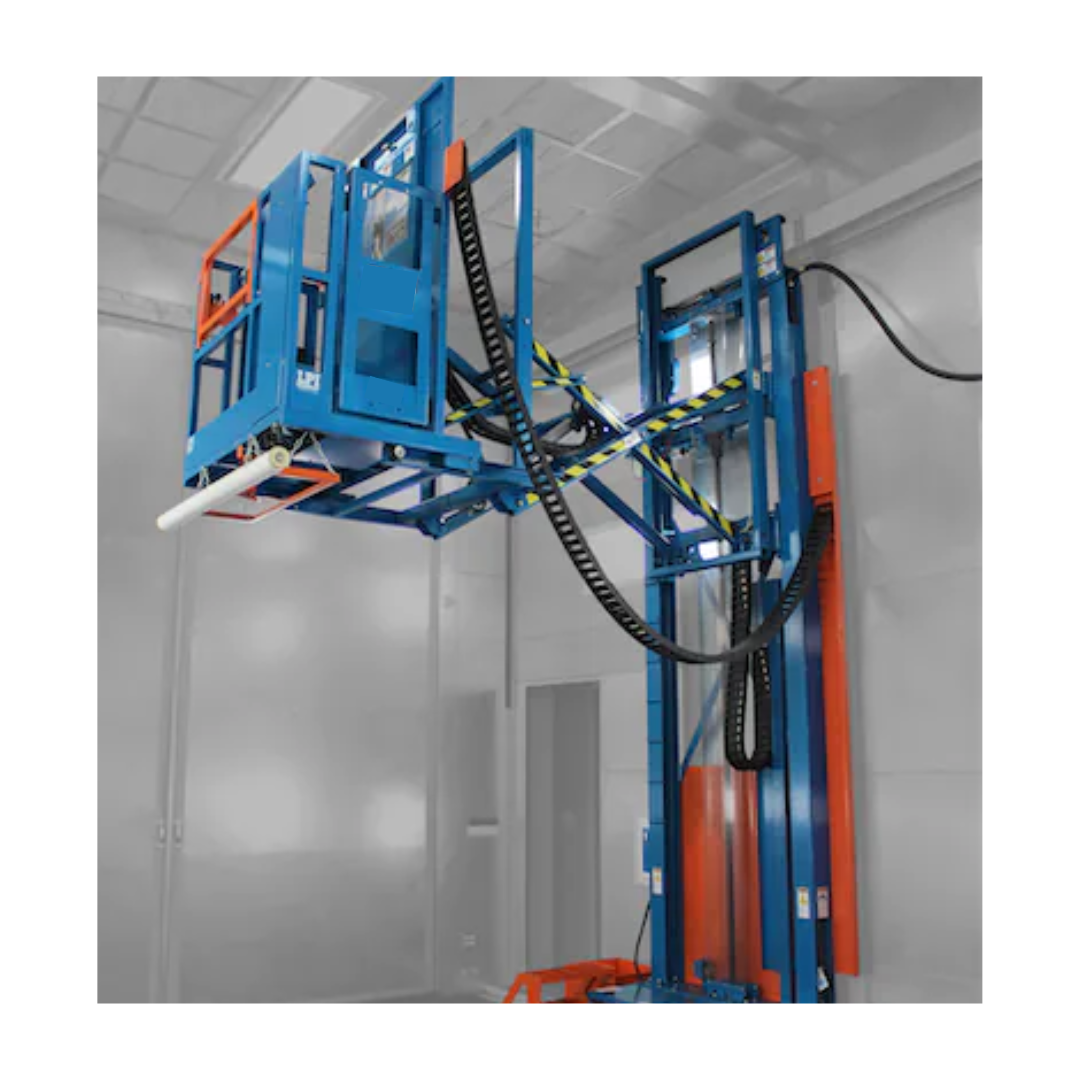

Electric Booth Lifting Rods
Ensures stable and controlled lifting for booths in exhibitions, events, or service areas. Delivers reliable performance for repeated use.

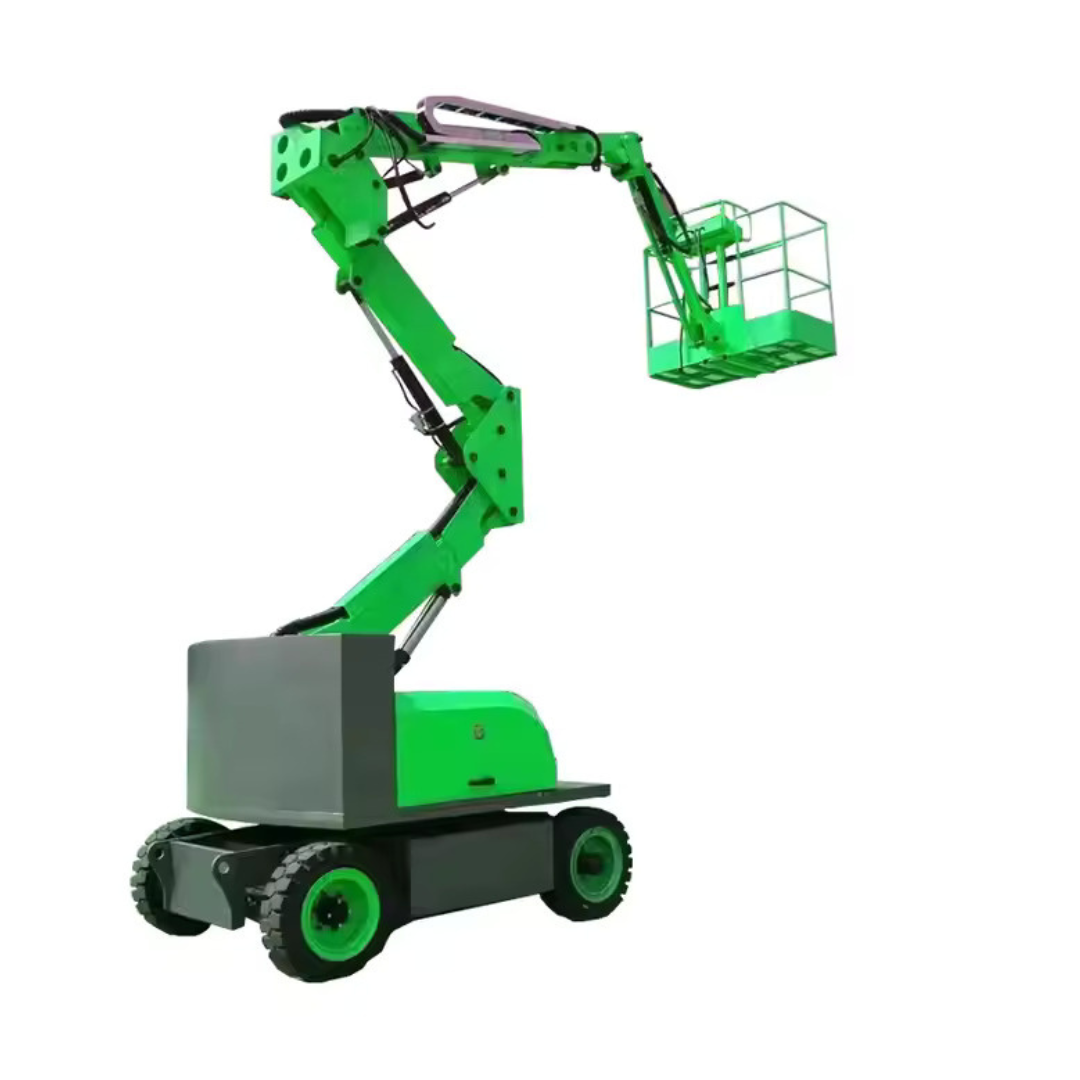

Electric Lift Systems
Offers strong and efficient vertical movement for industrial applications. Ideal for automated systems that require durability and high load handling.
What is an electric linear actuator?
An electric linear actuator is a device that converts electrical energy into straight-line motion. Unlike a motor that creates rotation, a linear actuator pushes or pulls something along a single axis. It’s commonly used in adjustable beds, medical equipment, industrial machinery, and home automation to provide smooth and controlled movement. Electric actuators are known for being precise, quiet, and easy to integrate with control systems.
How do I choose the right linear actuator for my application?
To choose the right linear actuator, you should consider factors such as the required load capacity, stroke length, speed, and voltage. Additionally, ensure that the actuator fits within your space and is compatible with your existing systems. For the PAX-0700, you would also want to confirm the actuator’s maximum thrust, as it can handle up to 4000N, making it ideal for applications like adjustable beds or lifting systems.
What safety features does the PAX-0700 include?
The PAX-0700 is equipped with built-in limit switches that automatically stop the actuator at the end of its stroke, preventing overextension. It also features electronic overload protection to safeguard against excessive current and potential damage. These safety mechanisms ensure reliable and secure operation in various applications.
Can the PAX-0700 be customized to specific requirements?
Yes, the PAX-0700 actuator can be customized to fit your specific needs. Options include different stroke lengths, input voltages (12V or 24V), and speed settings. You can also request special mounting brackets or wiring configurations if needed. Customization helps ensure the actuator works perfectly with your application.
